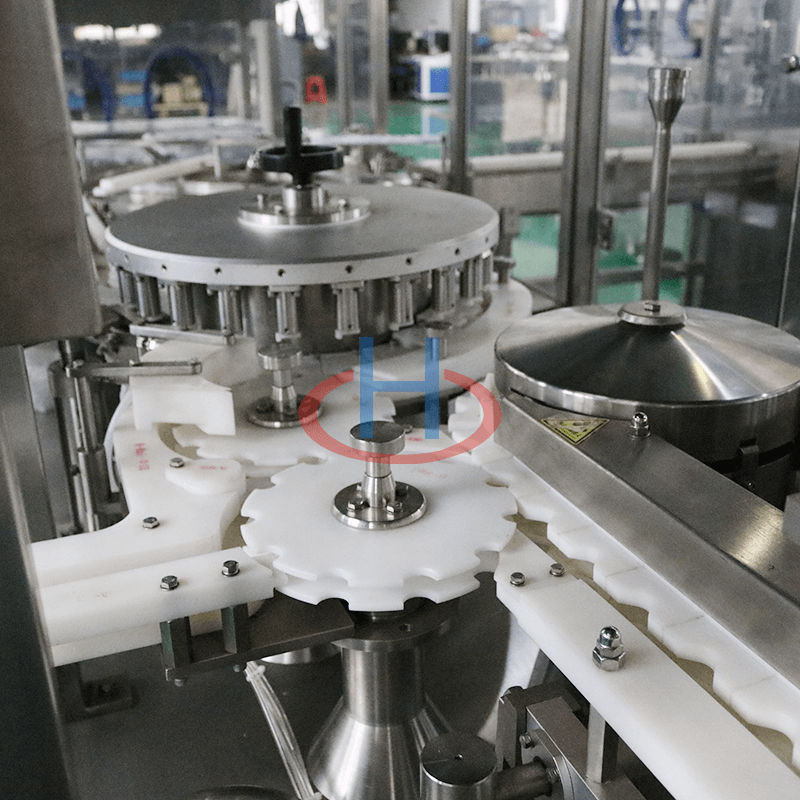

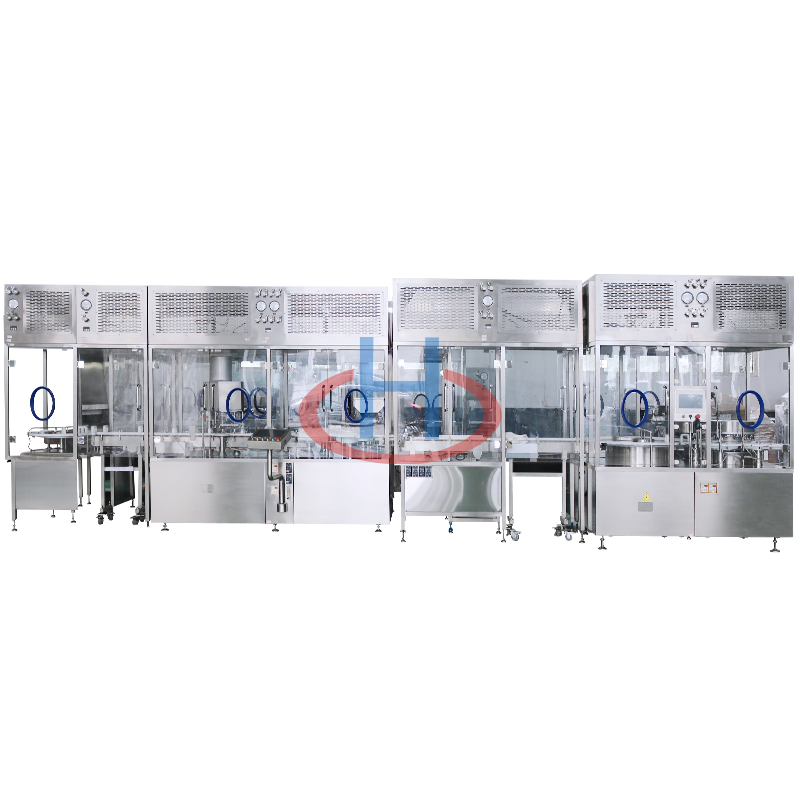

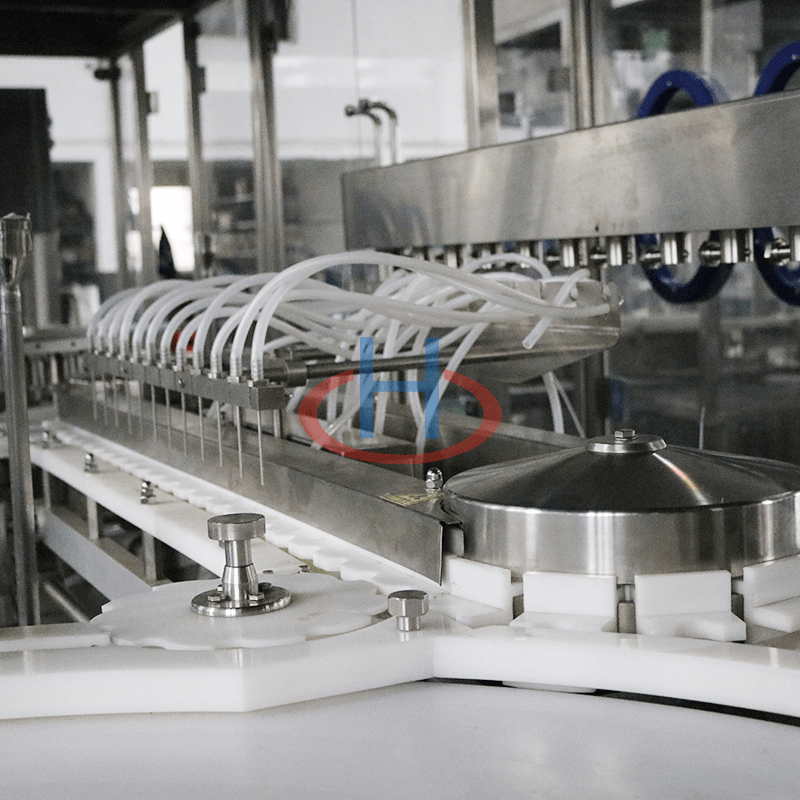

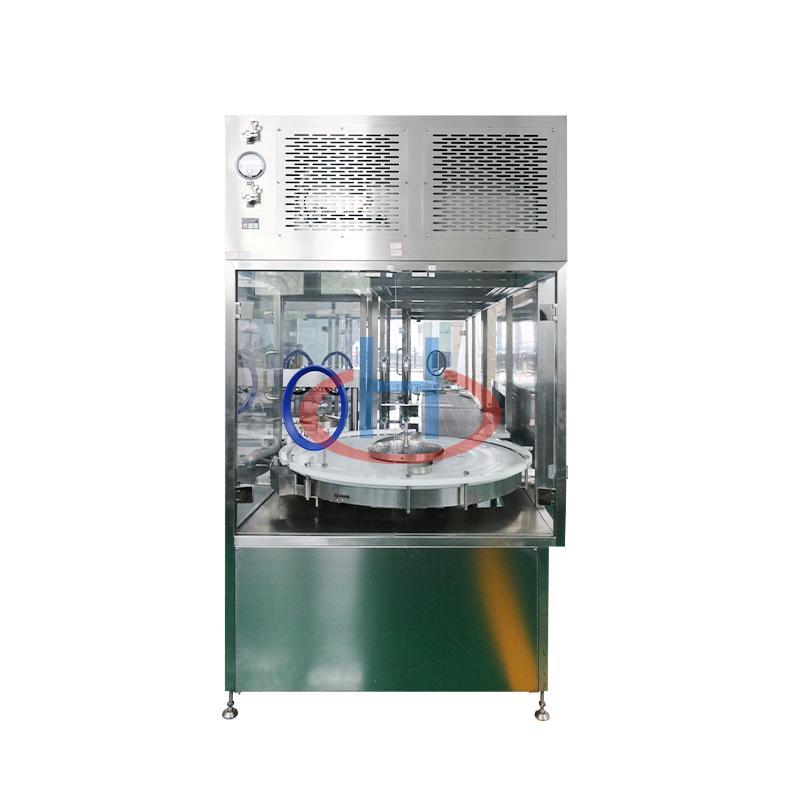

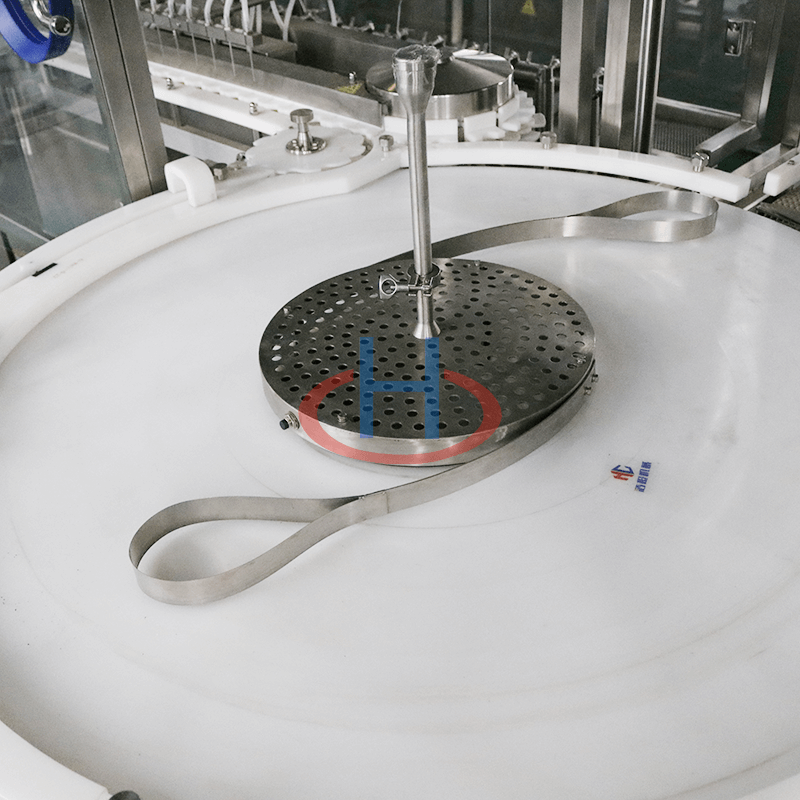

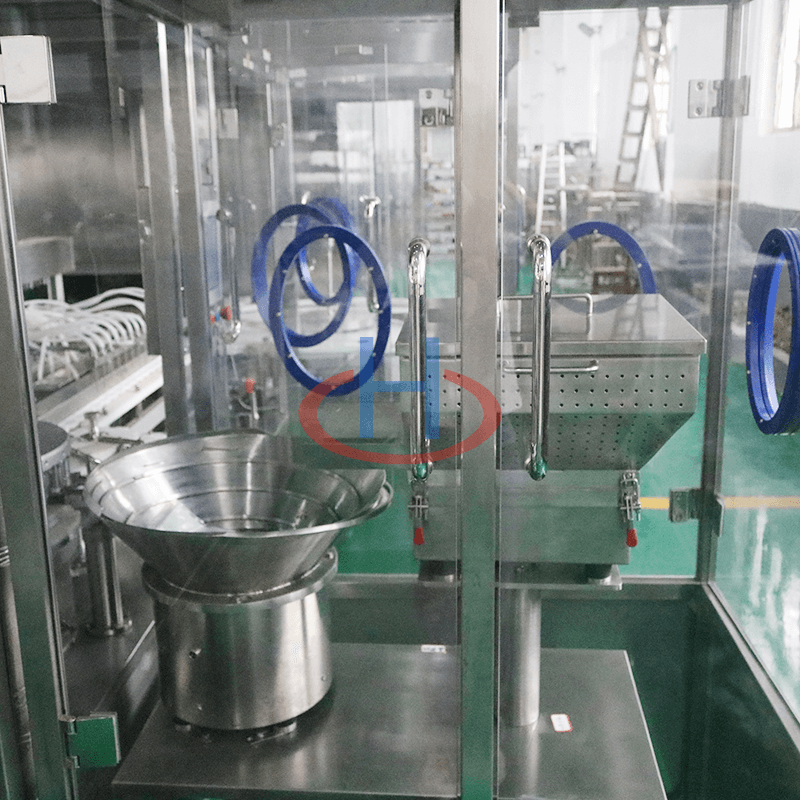

The filling area of the linear tracking filling equipment is equipped with a sterile isolation device to ensure the production of products under sterile conditions. FFU system: special air inlet and air duct design, low pressure loss, uniform wind pressure diffusion, average and stable wind speed on the air outlet, metal structure downwind liner. Partition management, separate control. When the ORABS isolation system opens the door, the equipment automatically shuts down. The operator does not intervene directly and can be equipped with sterile gloves for operation. At the same time, it can also be equipped with a glove leak detection device to reduce the waiting time for production self-cleaning. It has the functions of stopping filling without bottles and not sucking plugs without bottles.
Technical Parameter
Model | HCYG-8 |
Filling Volume | 1-100ML |
Production Capacity | 60-200 Bottles/minute |
Filling Method | Linear filling |
Power Supply | Custom made |
Power (Reference) | 3.5 kw |
Machine Weight (Reference) | 1000 kg |
Dimensions (Reference) | 2550*1650*2100mm (length*width*height) (Height includes the 100-level laminar flow hood) |
Packing And Delivery
