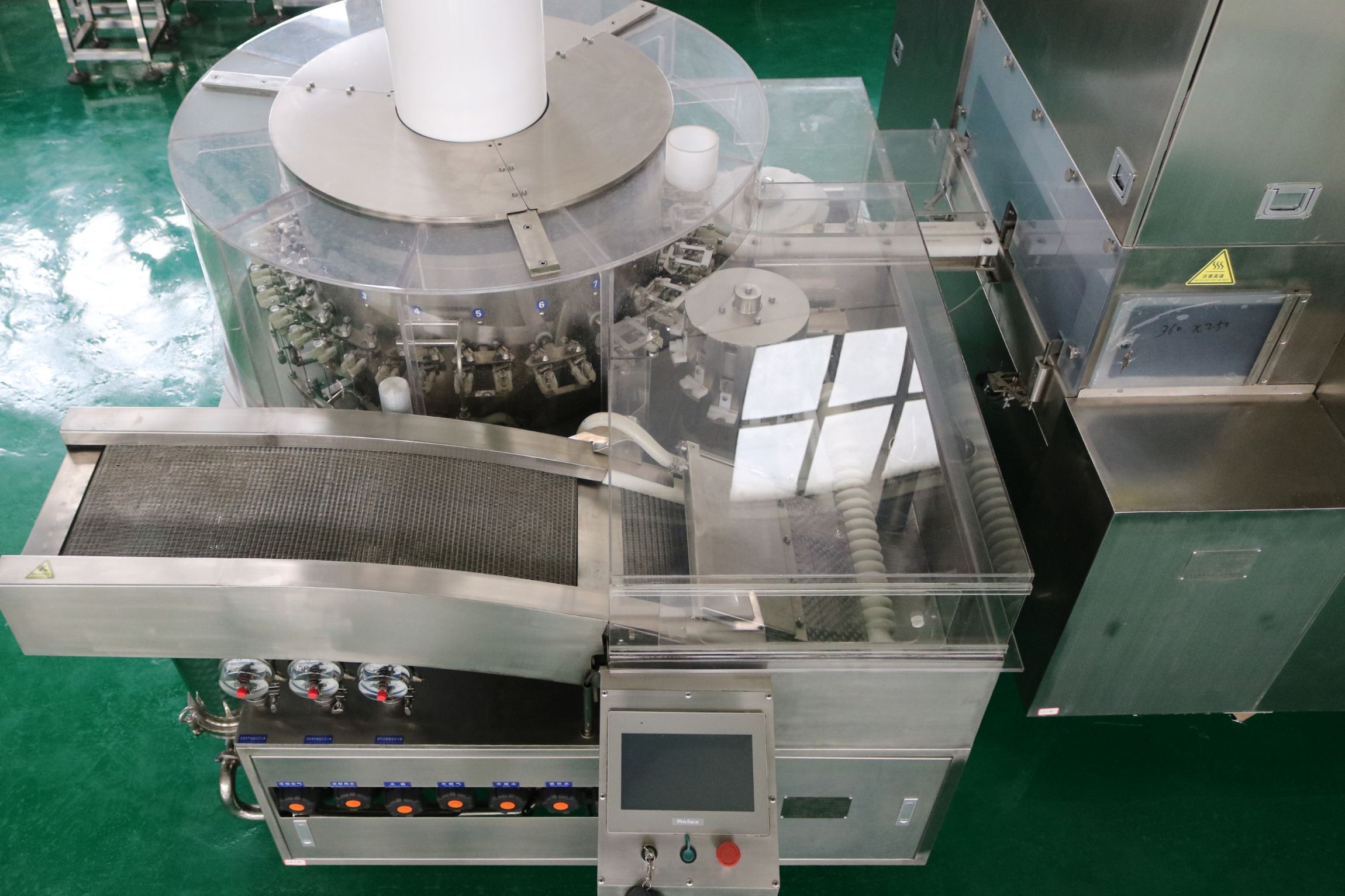

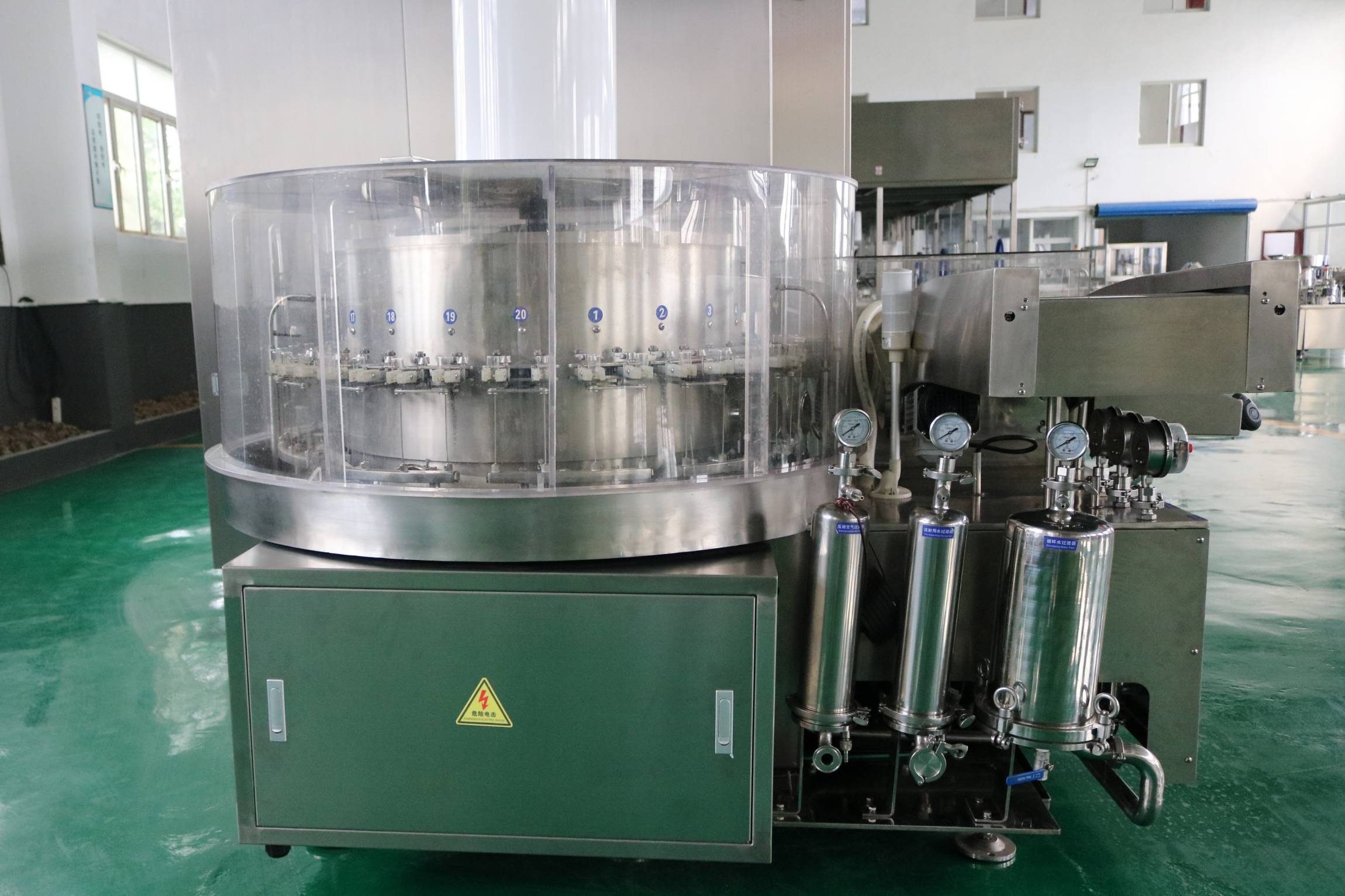

This machine can automatically complete the processes of bottle feeding, bottle water filling, ultrasonic cleaning, bottle external cleaning, bottle internal cleaning, bottle unloading, etc. The bottle is driven by the conveyor belt into the bottle water filling area. After the water filling system fills the bottle with water, the bottle is ultrasonically cleaned in the water tank. After cleaning, the screw separates the bottle and sends it to the lifting wheel, which is lifted and sent to the robot to clamp and turn 180 degrees so that the bottle mouth faces downward, and then the robot sends the bottle to the fine washing area.
Technical Parameter

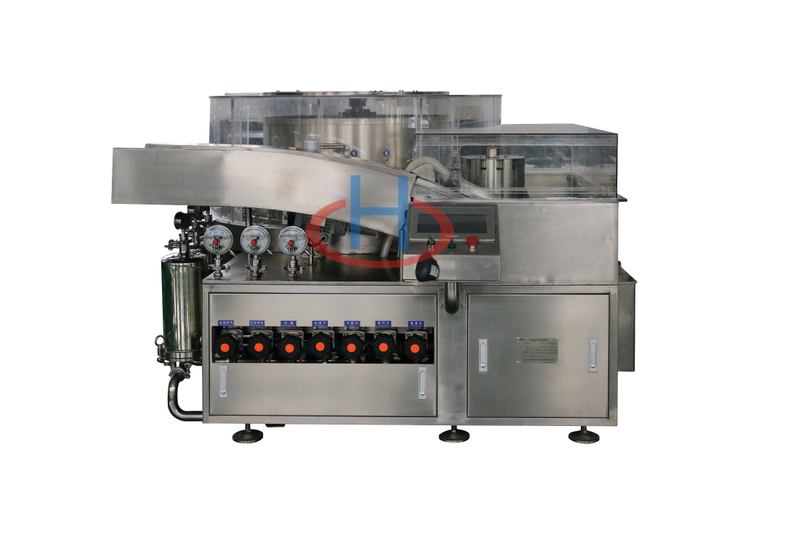

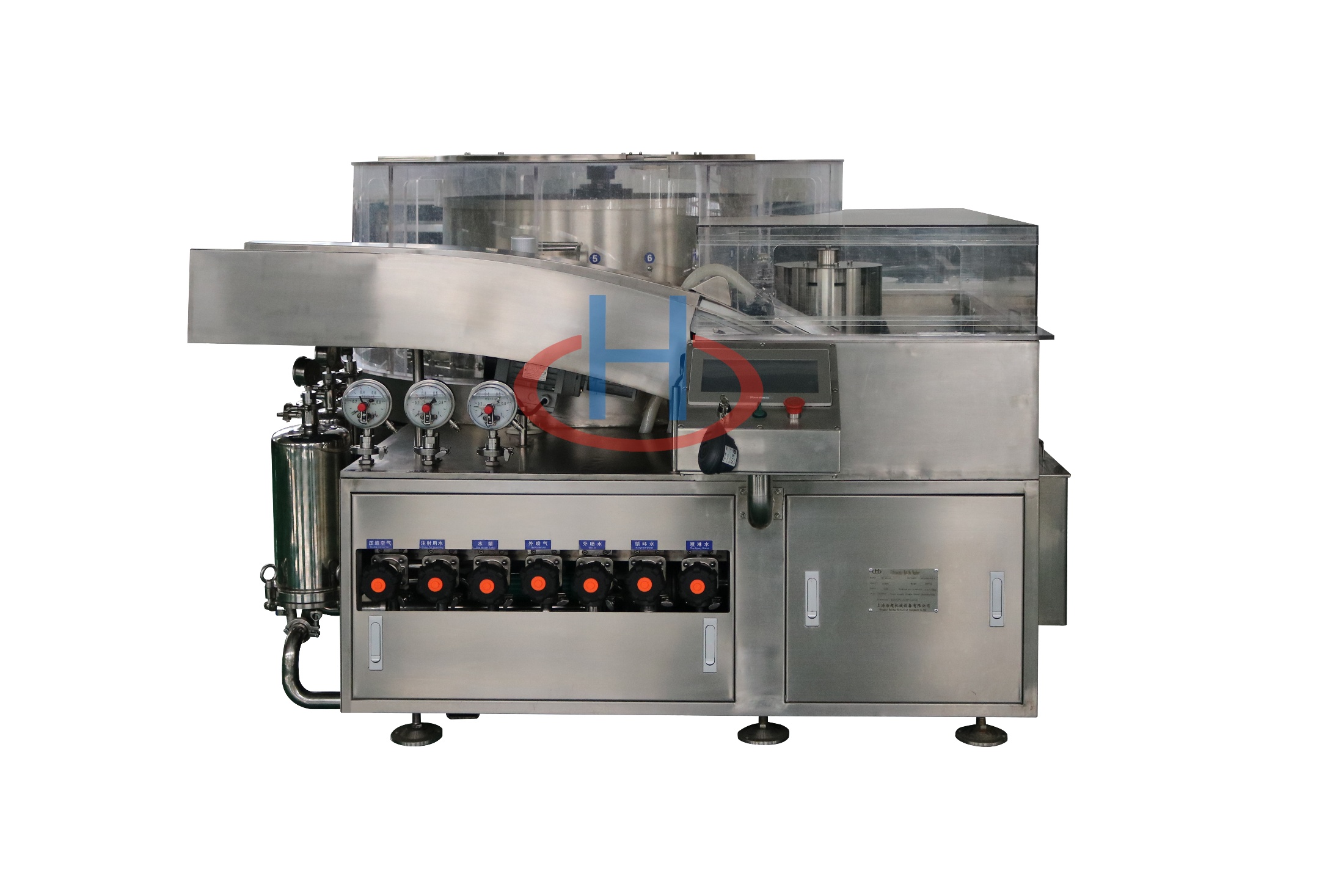

Vertical Ultrasonic Bottle Washing Machine | HCLXP-120 |
Applicable Bottle Type | 10ml Controlled bottle |
Yield | 6000-10000 bottles/hour, variable frequency speed regulation |
Water For Injection Flushing | 1m3/h |
Purified Compressed Air Consumption | 60m3/h |
Water For Injection Pressure | 0.25Mpa~0.3Mpa |
Purify Compressed Air Pressure | 0.25Mpa~0.3Mpa |
Power | 15 kW |
Device Size | 2400×2100×2000(mm) Length, width and height |
Detail Display

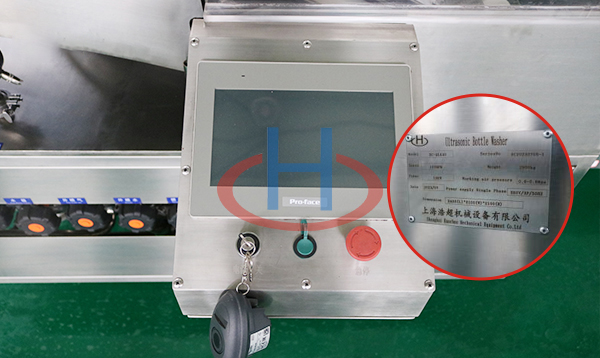

Simple operation, intelligent control

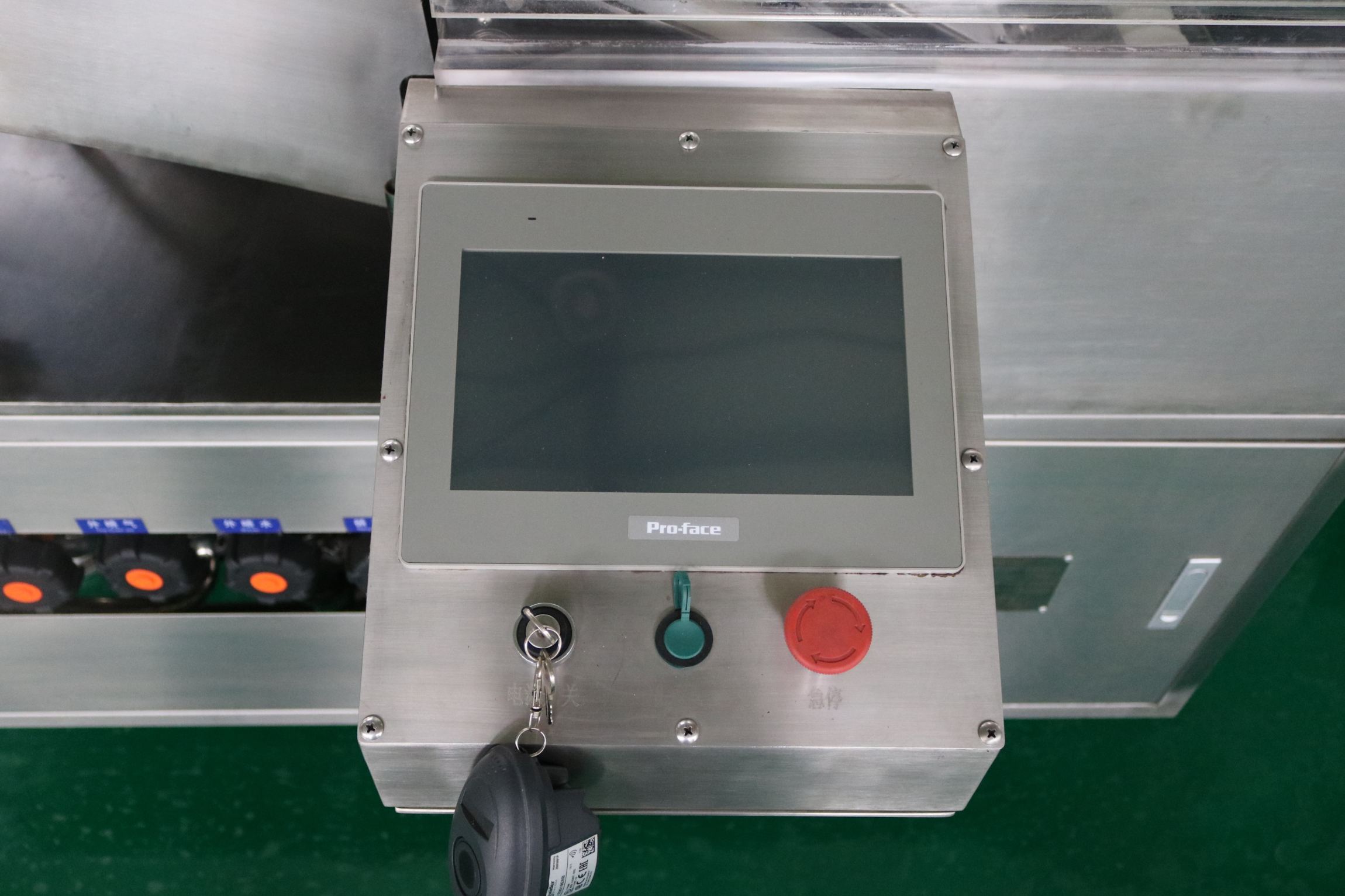

Full-color touch screen and PLC control system

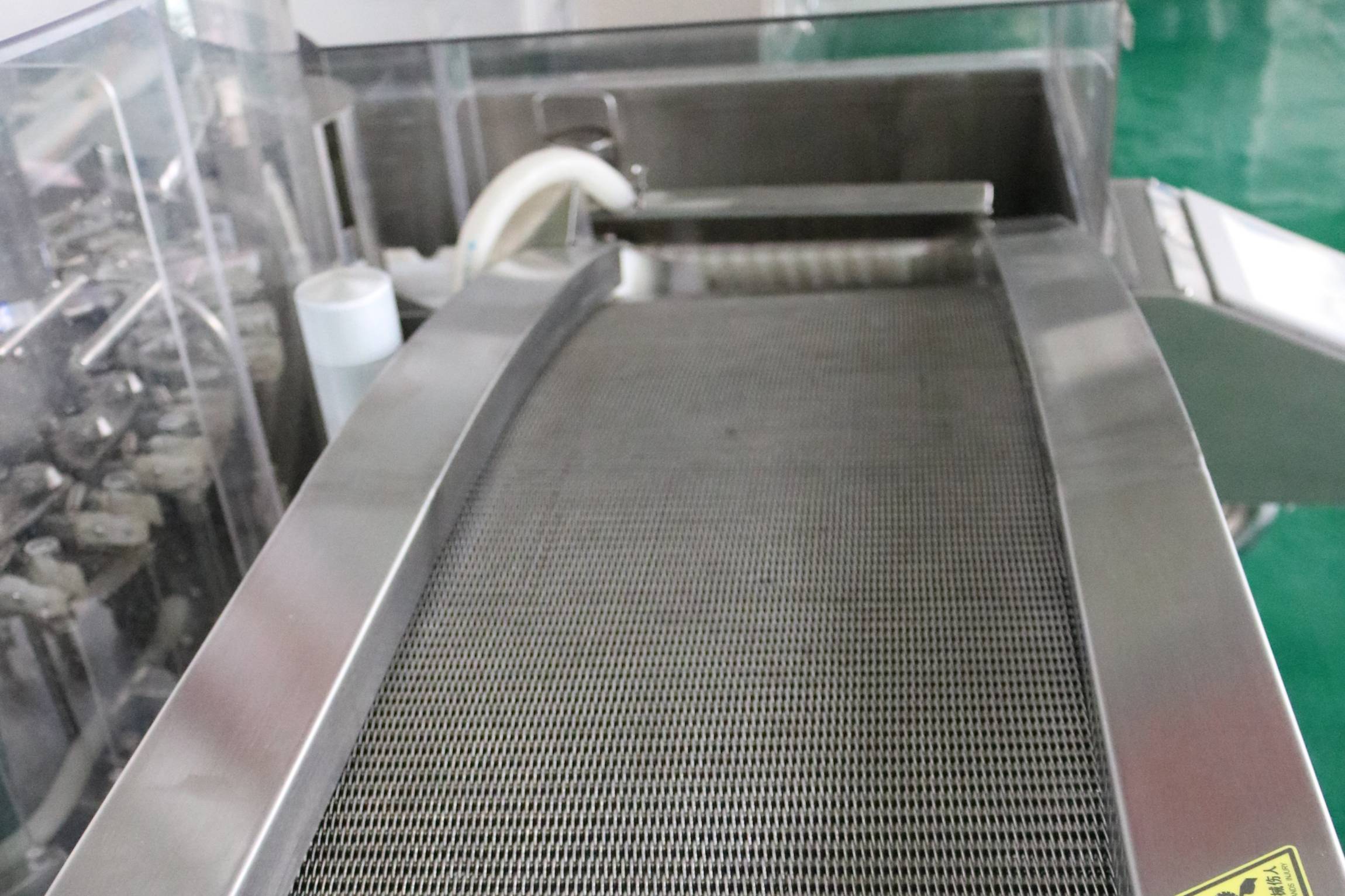

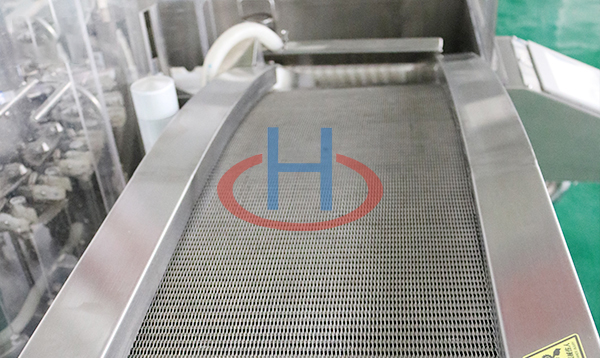

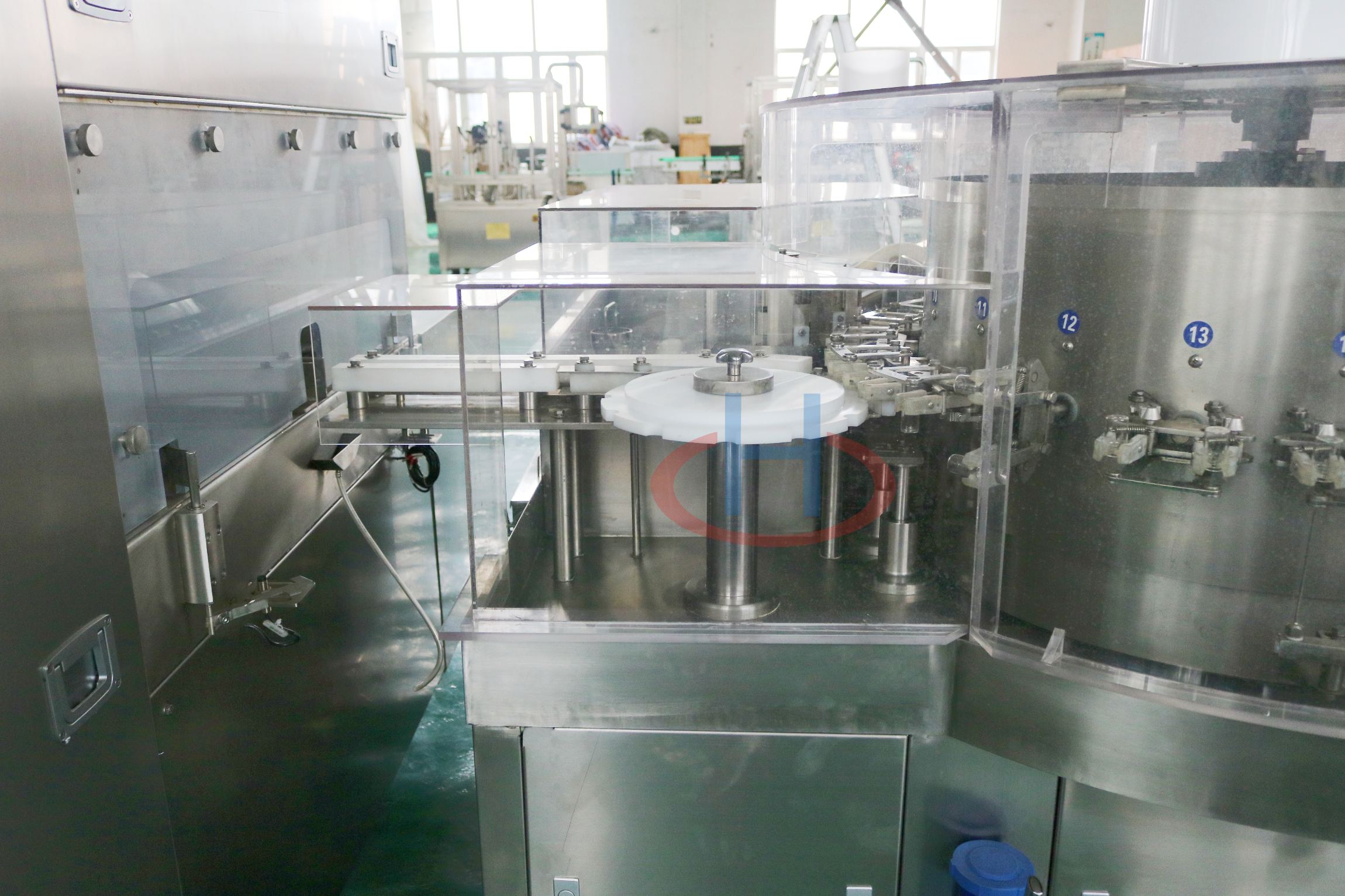

Bottle inlet
Filling water into the bottle

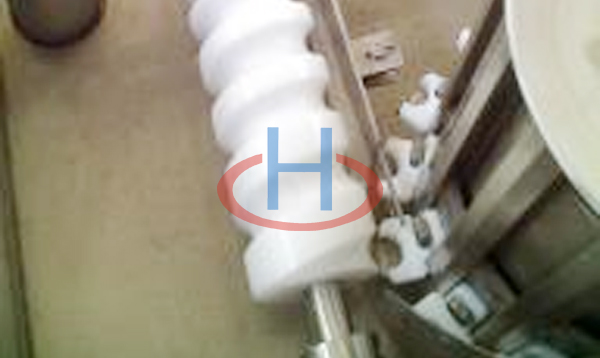

Bottle conveying screw

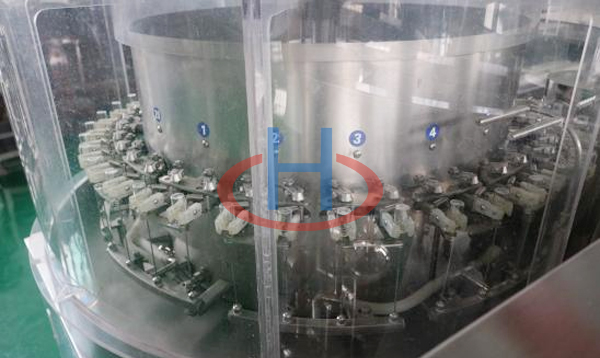

Rotary robot
Fine cleaning area

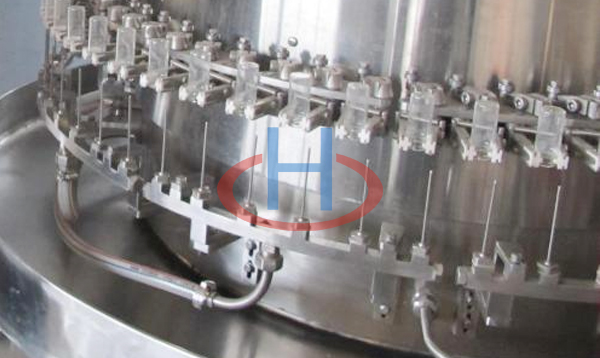

Multiple needle sprays
Pressure washing
