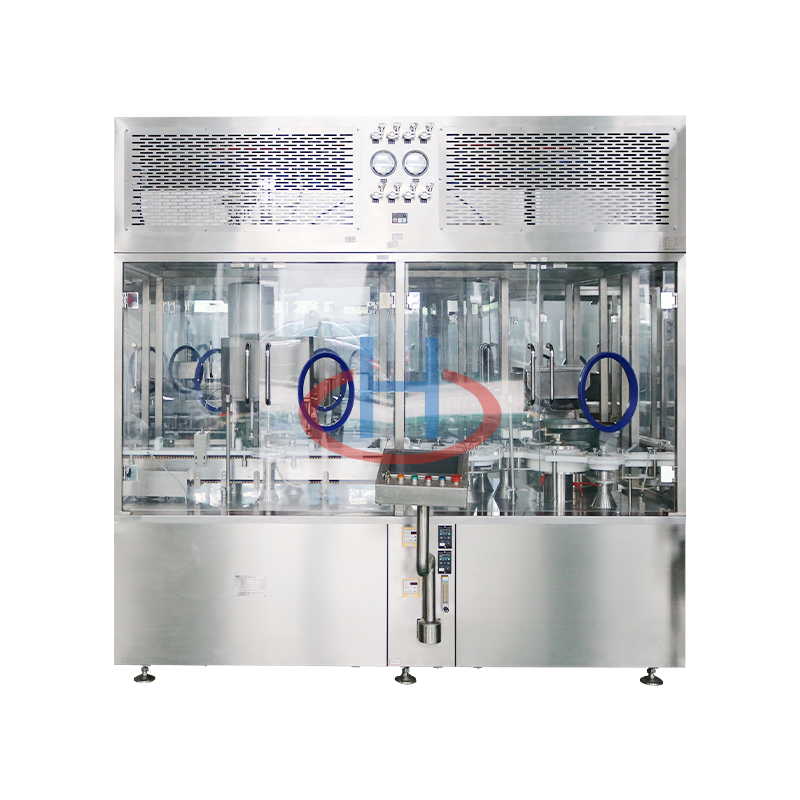

The equipment is a powder filling machine customized according to the customer's bottle. This machine is suitable for filling various powders, such as pepper, salt, Chinese herbal powder, ginseng powder, leech powder, wolfberry powder, etc. The whole machine is made of 304 stainless steel, the material contact part is made of 316L stainless steel, and the parts that need to be cleaned are all made of quick-change devices. The filling area is equipped with a sterile isolation device to ensure the production of products under sterile conditions. FFU system: special air inlet and air duct design, low pressure loss, uniform wind pressure diffusion, average and stable wind speed on the air outlet, metal structure downwind liner. Zoning management, separate control. Widely used in medicine, daily chemicals, food and other industries. Meets GMP requirements.
Technical Parameter
Model | HCFGZ-120 |
Filling Volume | 1-100g |
Production Capacity | 60-200 bottles/minute |
Filling Method | Screw feeding |
Power Supply | Custom made |
Power (Reference) | 3.5 kw |
Machine Weight (Reference) | 1000 kg |
Dimensions (Reference) | 2400*1650*2000mm (length*width*height) (Height includes the 100-level laminar flow hood) |
Detail Display

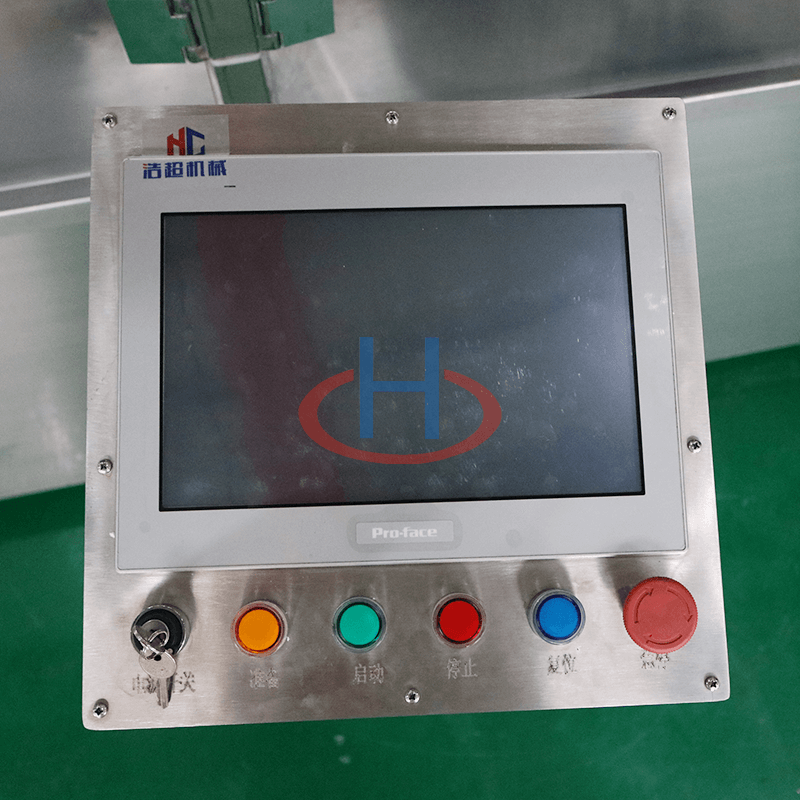

Simple operation, intelligent control, full-color touch screen and PLC control system

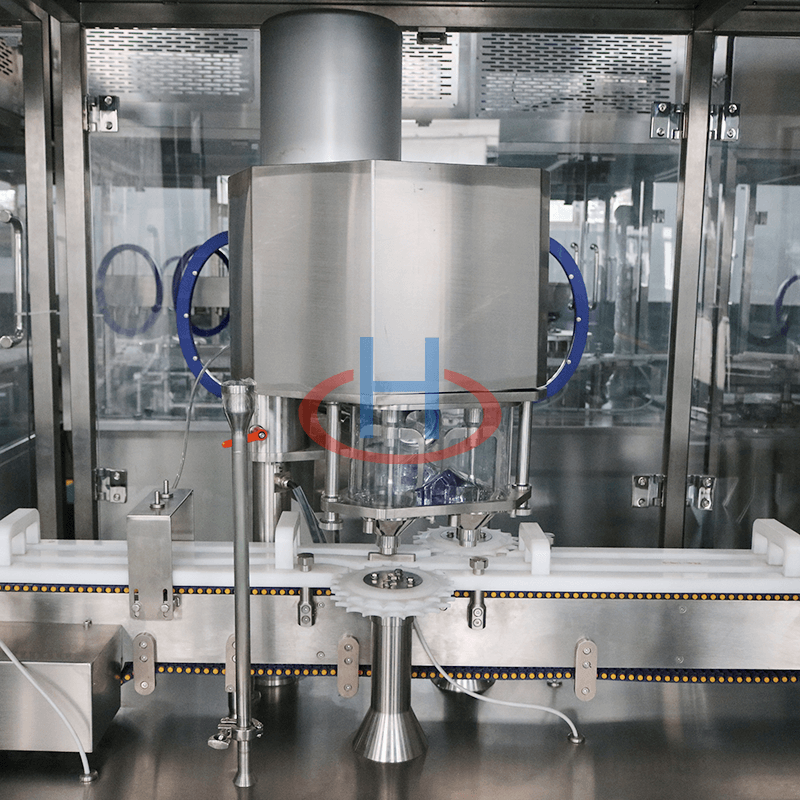

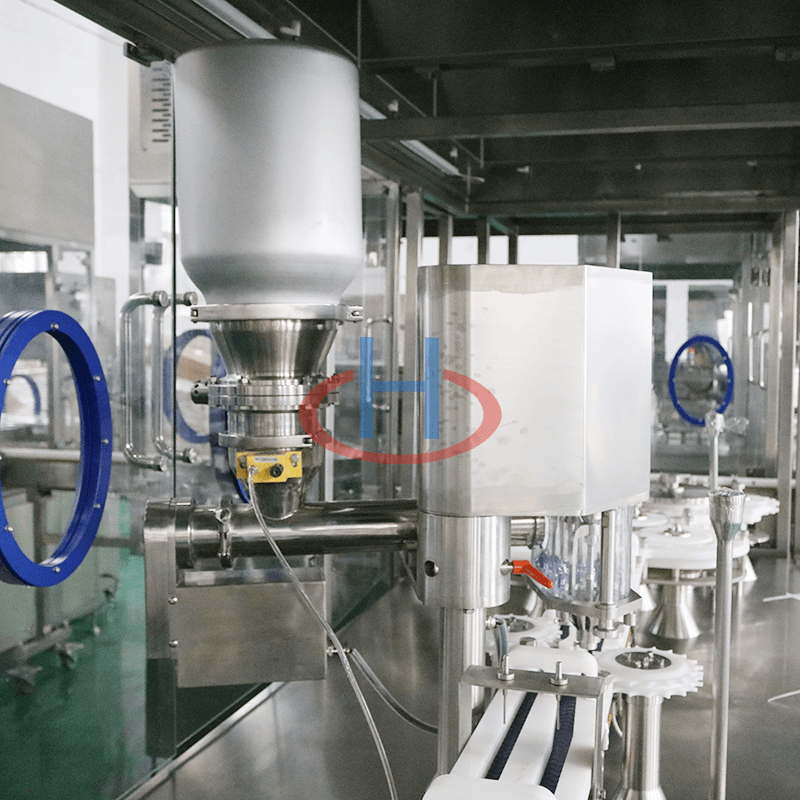

Servo motor screw packing

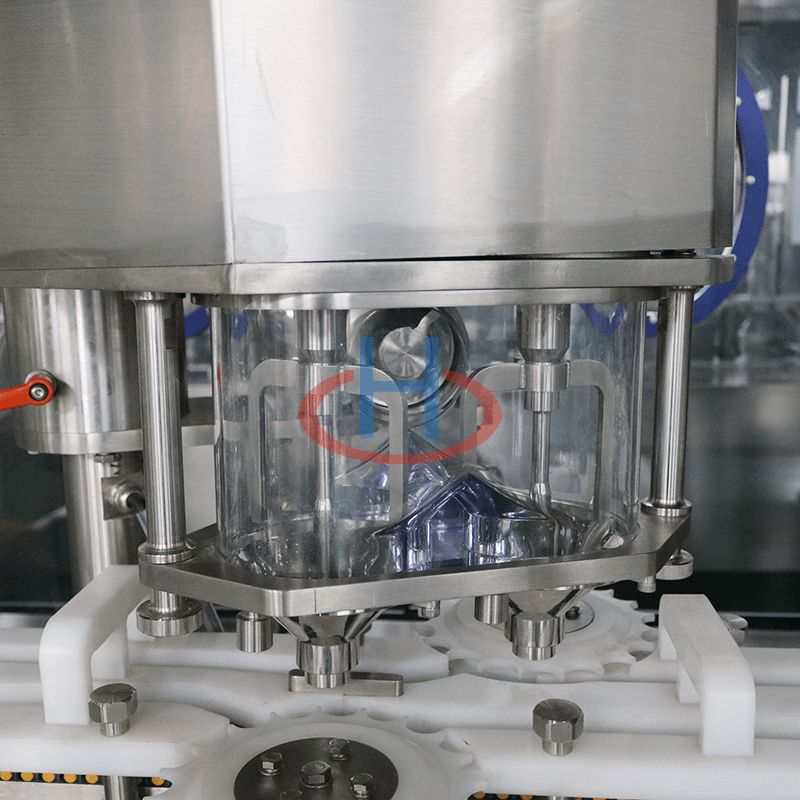

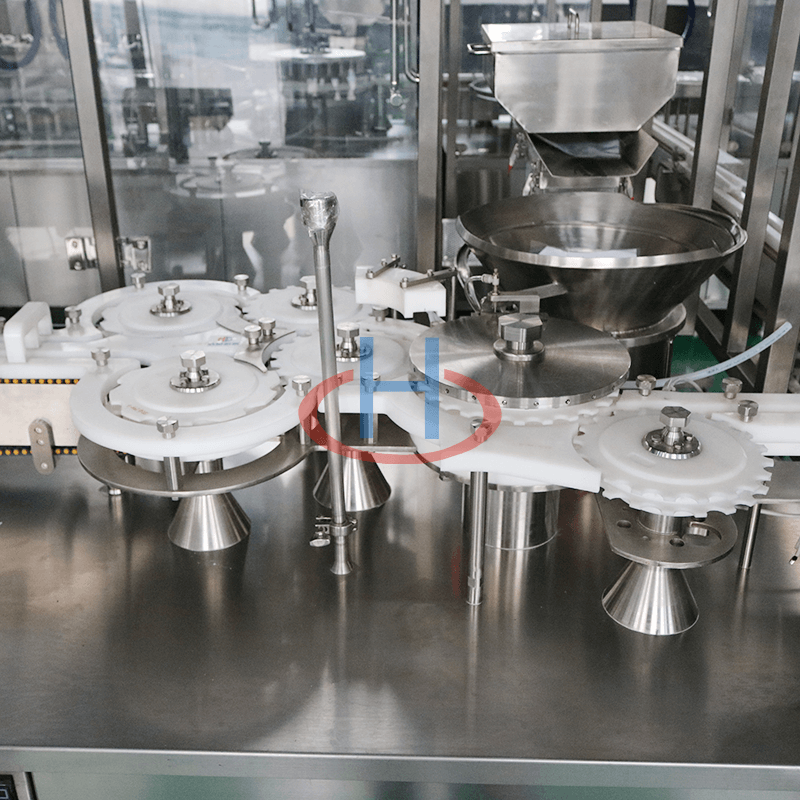

Positioning, plugging, capping and capping
