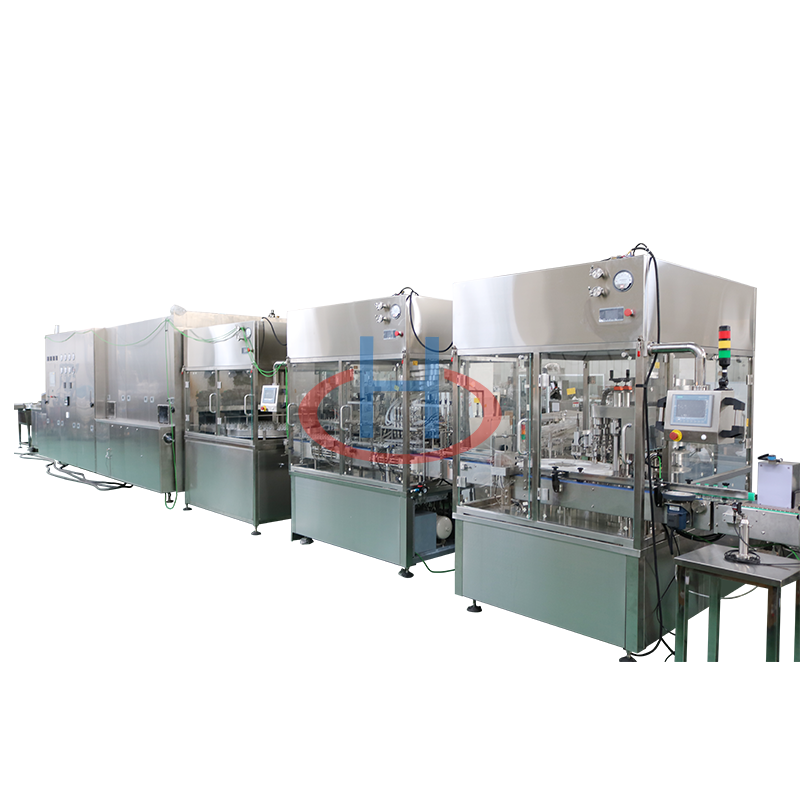

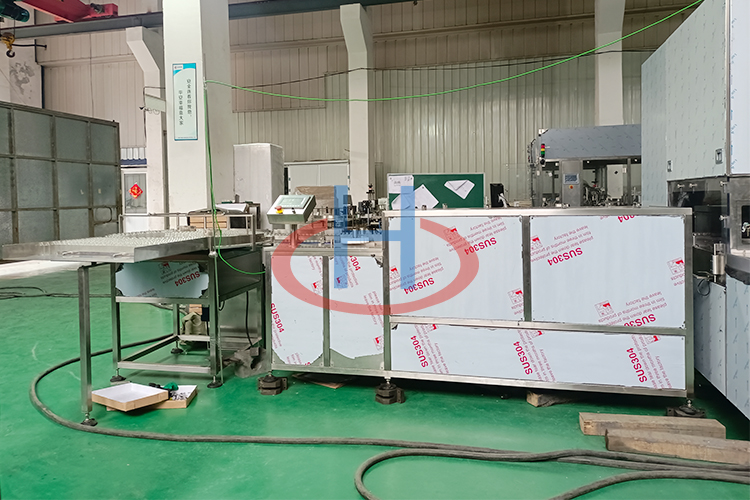

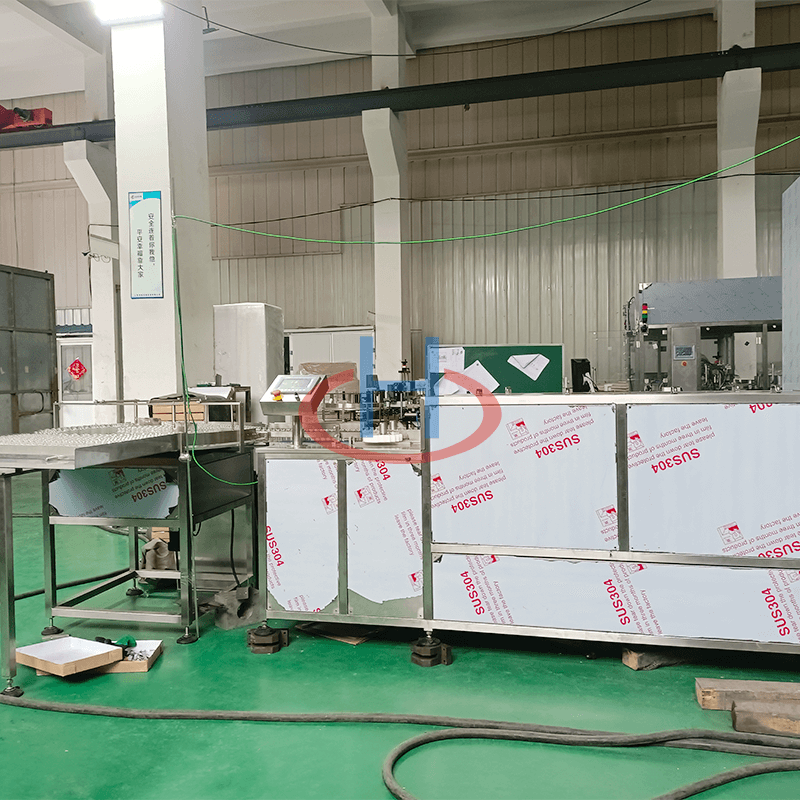

The Large Infusion Filling Production Line (Glass Bottle Liquid Filling Line) is a fully integrated, GMP-compliant end-to-end solution designed for high-volume pharmaceutical liquid manufacturing. This turnkey glass bottle liquid filling line unifies all core processes from bottle feeding to final labeling, making it the optimal choice for pharmaceutical enterprises producing large volume infusions (IV solutions) and small-dose parenteral solutions. Composed of a rotary bottle feeder, drum bottle washer, high-temperature sterilization oven, buffer rotary table, pre-filling nitrogen dosing unit, filling & stoppering machine, capping machine, and labeling machine, it delivers uninterrupted automated production with full compatibility for multiple glass bottle specifications.
This pharmaceutical large infusion filling line supports seamless switching between diverse bottle sizes and filling volumes with minimal adjustment, perfectly adapting to multi-batch pharmaceutical production needs.
It boasts an industry-leading low bottle breakage rate (≤0.1%), high finished product yield, and optimized low energy consumption design, drastically reducing production waste and long-term operating costs for manufacturers.

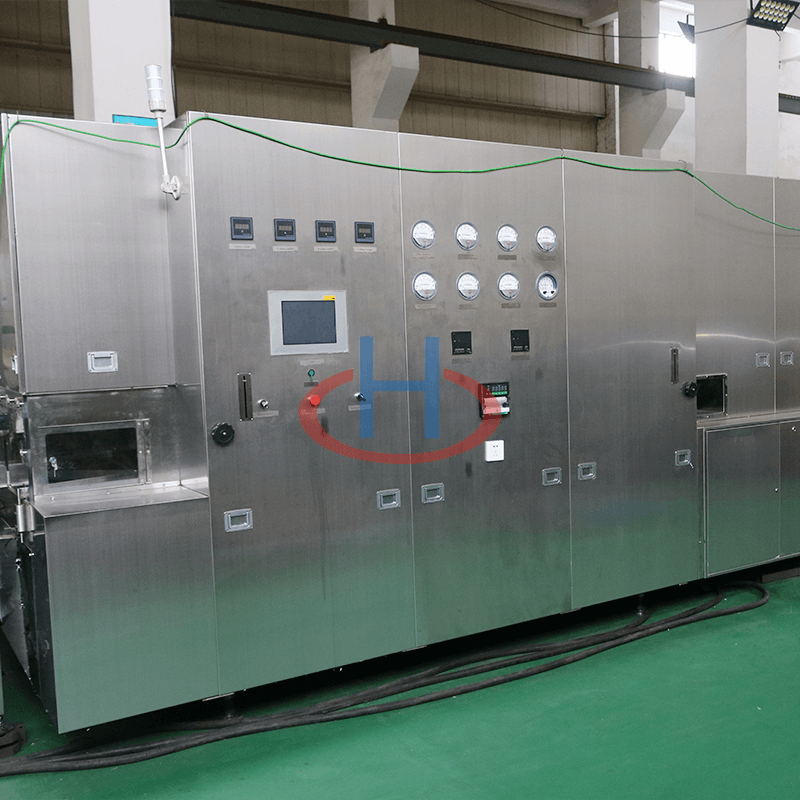

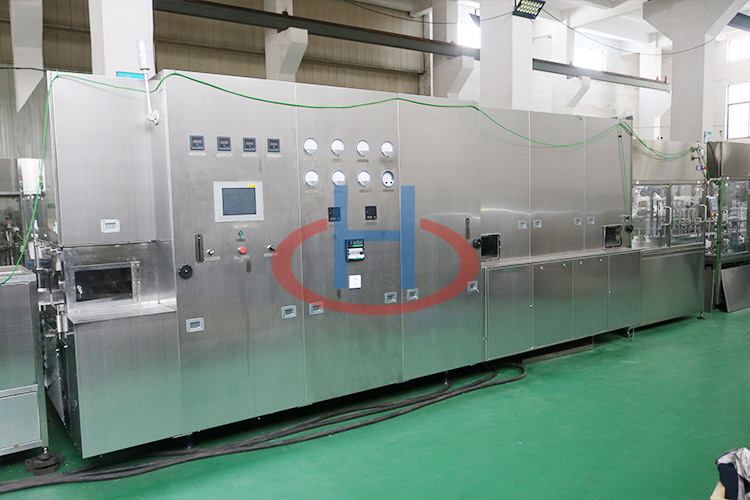

All product-contact parts are made of 316L pharmaceutical-grade stainless steel. The drum washer supports customizable three-water three-gas washing processes, and the tunnel sterilization oven ensures reliable bottle sterilization, fully meeting global pharmaceutical hygienic standards.

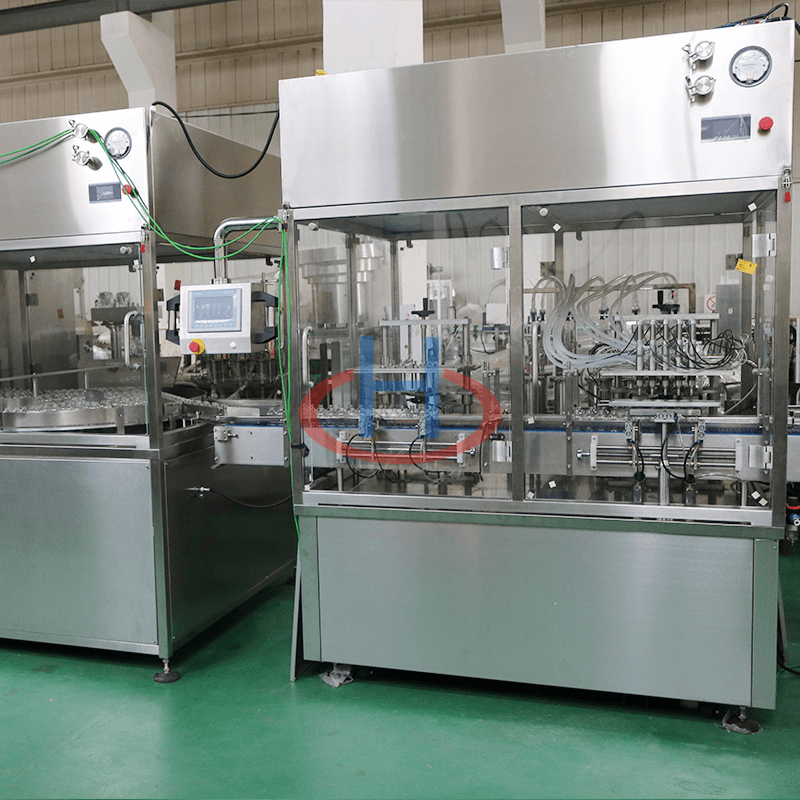

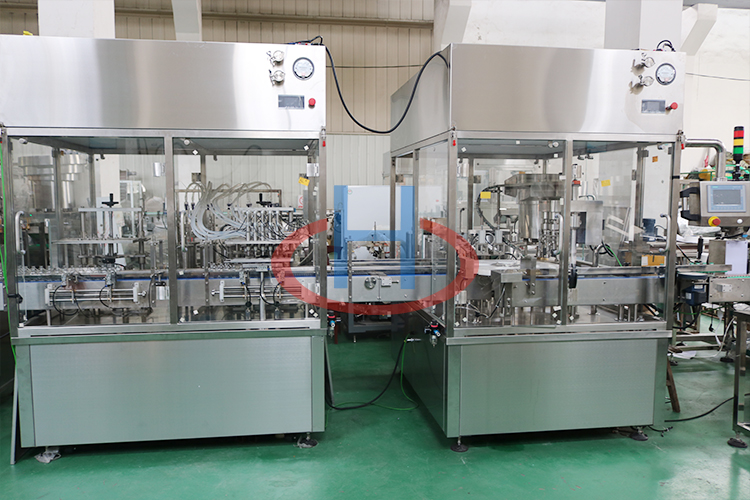

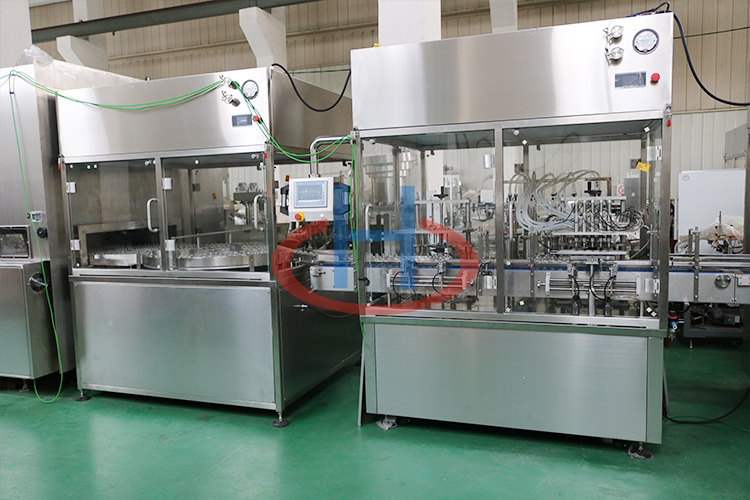

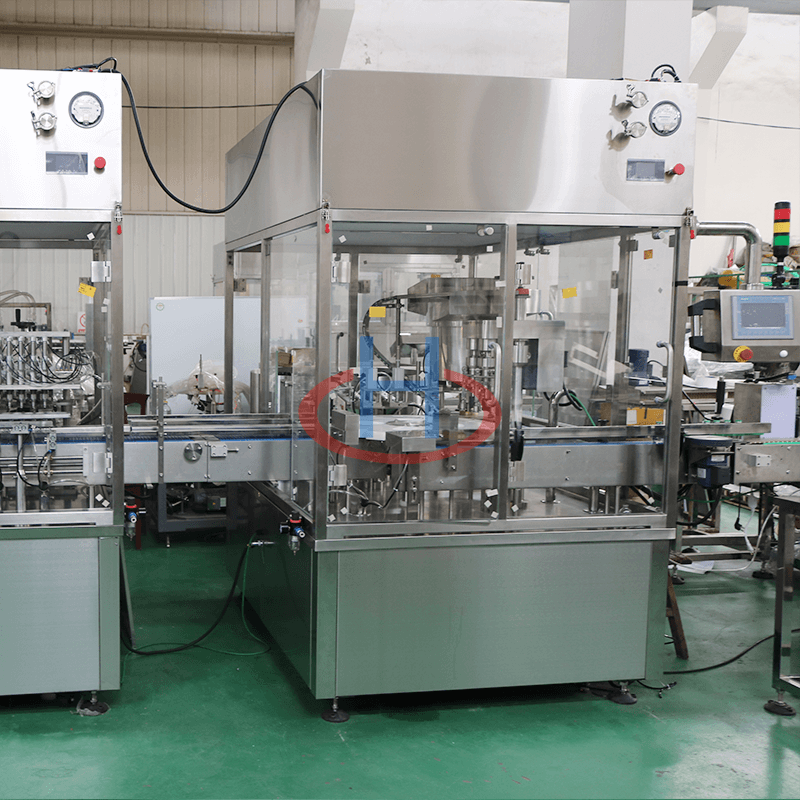

The filling system delivers stable dosing with zero dripping; the stoppering and capping unit provides precise positioning and firm, leak-proof sealing, eliminating product quality risks in mass production.
The entire line supports both standalone single-machine control and linked chain control, with customizable automation logic to match diverse production rhythms and workshop layouts.
Parameter | Standard Specification |
Core Model | HC-INF500 Glass Bottle Infusion Filling Line |
Applicable Bottle Volume | 50ml-500ml glass infusion bottles (customizable) |
Production Capacity | 60-200 bottles/minute (customizable) |
Filling Accuracy | ≤±0.3% of rated filling volume |
Bottle Breakage Rate | ≤0.1% |
Product-Contact Material | 316L pharmaceutical-grade stainless steel |
Control Mode | PLC + touch screen, single/linked control optional |
Power Supply | Customizable per regional standards (110V/220V/380V, 50/60Hz) |
The automatic IV solution filling production line realizes uninterrupted production via a streamlined workflow: rotary bottle feeding → multi-stage bottle washing → high-temperature sterilization & drying → buffer transfer & pre-filling nitrogen dosing → precision sterile filling → positioning stoppering & capping → stable labeling → finished product collection. The entire process requires minimal manual intervention, ensuring sterile and consistent production for pharmaceutical applications.
This line is purpose-built for pharmaceutical manufacturing, with core applications including large volume parenteral (IV infusion) production, small volume injection manufacturing, oral liquid production, biological reagent filling, and veterinary drug manufacturing.
Our GMP-compliant infusion filling production line is manufactured under ISO9001:2015 quality management system, with multiple utility model patents for core filling technology, full compliance with global pharmaceutical GMP standards. Every line undergoes full-load pre-shipment testing, with full lifecycle maintenance and quality tracking for global customers.
We offer fully tailored solutions: customizable washing processes, production capacity, filling volume range, automation logic, and bottle compatibility. We also provide OEM/ODM services with customizable branding, equipment configuration, and full line layout design with on-site commissioning support.
Yes, it supports quick switching between diverse bottle sizes and filling volumes with minimal adjustment, fully meeting the needs of multi-batch, multi-specification pharmaceutical production.
Absolutely. All product-contact parts use 316L stainless steel, with full line design meeting GMP hygienic requirements, and complete qualification documentation to support global regulatory approval processes.
We provide comprehensive global support including remote technical guidance, on-site installation and commissioning, professional operator training, and lifelong spare parts supply and equipment maintenance services.
Whether building a new pharmaceutical workshop or upgrading an existing production line, our professional team can deliver a tailored Large Infusion Filling Production Line solution. Contact us today for a free line layout design, detailed quotation, and sample testing services!
