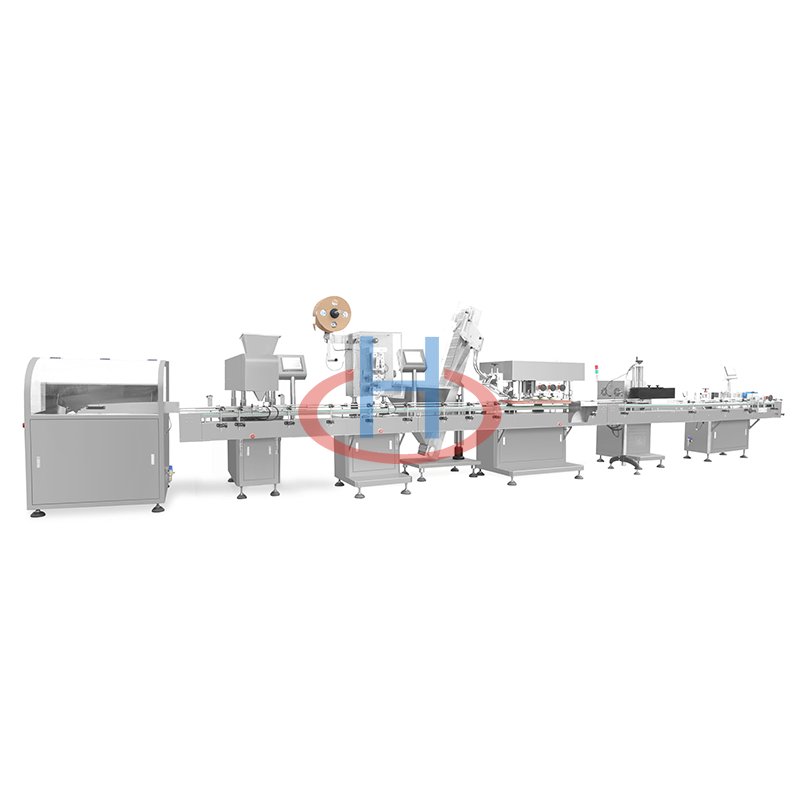

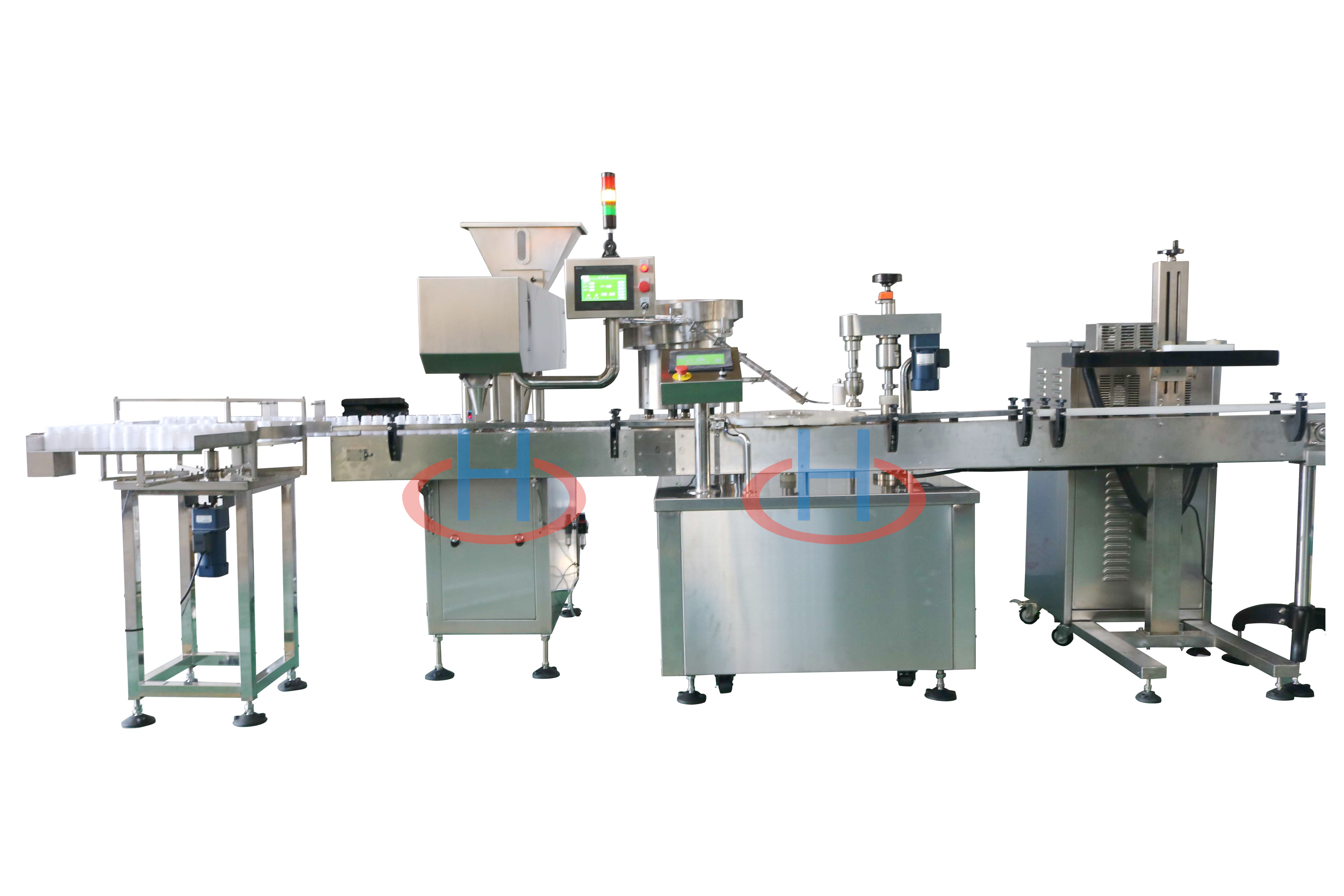

The counting machine production line is a production line composed of bottle supply machine or fully automatic bottle sorting machine, counting filling machine, capping machine, and labeling machine. The bottle blocking device on the bottle conveying track of the bottle conveying mechanism will block the bottles conveyed by the previous equipment at the bottling position and wait for filling. The tablets or capsules, by the vibration of the feeding corrugated plate, enter the storage warehouse in an orderly manner. There is a counting photoelectric sensor installed at the storage warehouse. The tablets or capsules that fall into the storage warehouse are quantitatively counted by the photoelectric counting sensor and filled into bottles at the bottling position. Then, they are capped by a capping machine, and labeled by a labeling machine.
Characteristics
1. Rotary table bottle feeding machine or automatic bottle sorting machine:
The bottle feeding machine adopts a rotary table bottle feeding method, which has the advantages of controllable production capacity and small footprint.
Automatic bottle sorting machine adopts automatic bottle sorting and dispensing, saving time and manpower.
2. Variable frequency screening type counting machine: low noise, stable falling, correct counting, speed adjustable through frequency conversion, and equipped with a light control device for stopping falling without bottles.

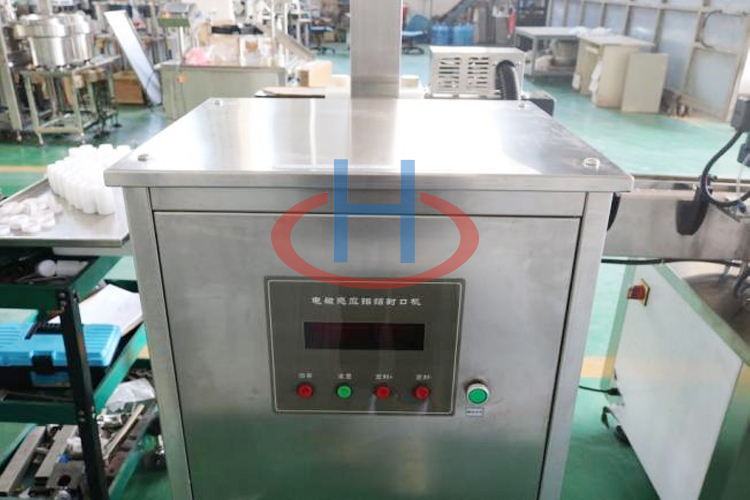

3. Aluminum foil sealing machine: equipped with an automatic rejecting device without aluminum foil, with adjustable speed within a certain range.

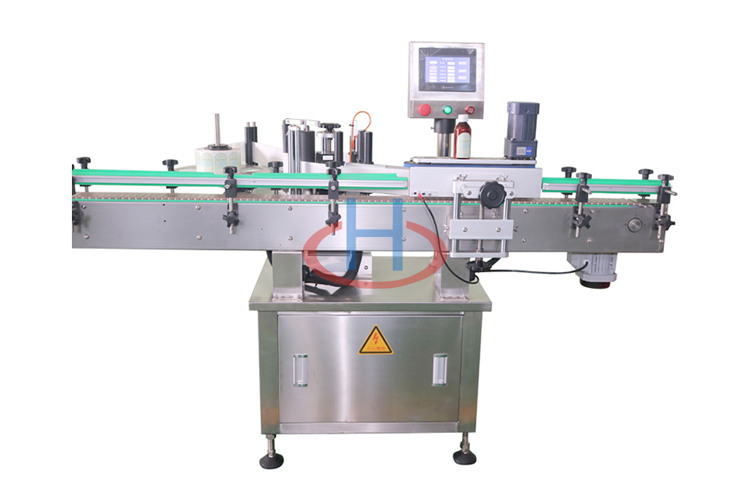

4. Adhesive labeling machine: It has the function of automatically stopping labeling when there are no bottles and automatically printing batch numbers.
Detail Display

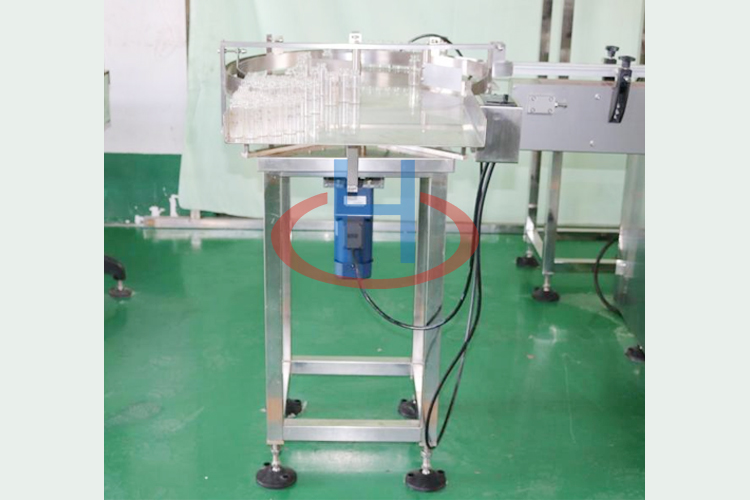

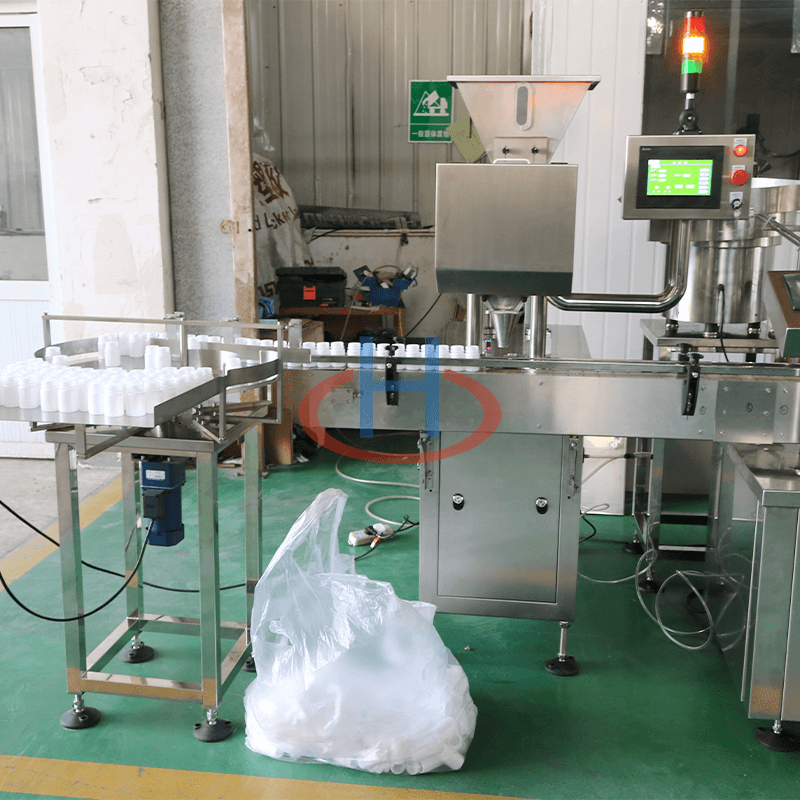

Rotary table bottle feeding machine

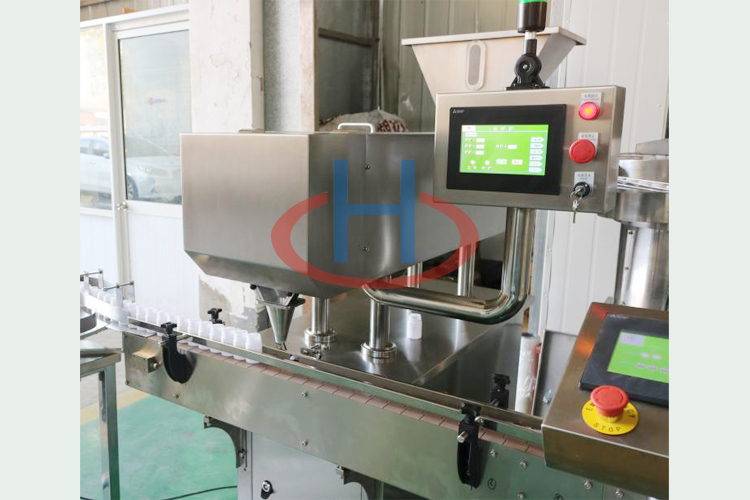

Multi channel counting machine

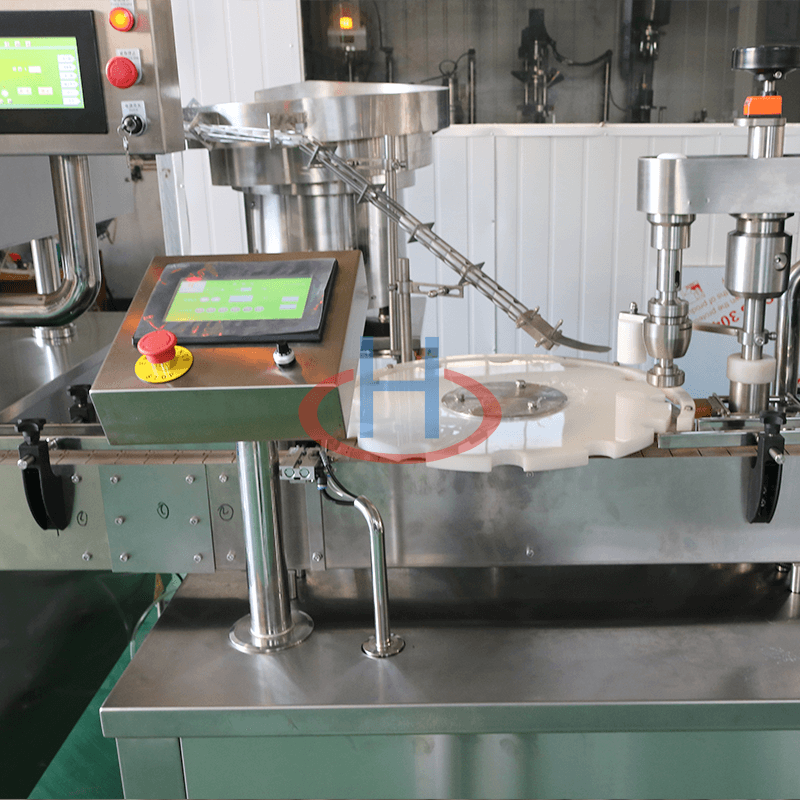

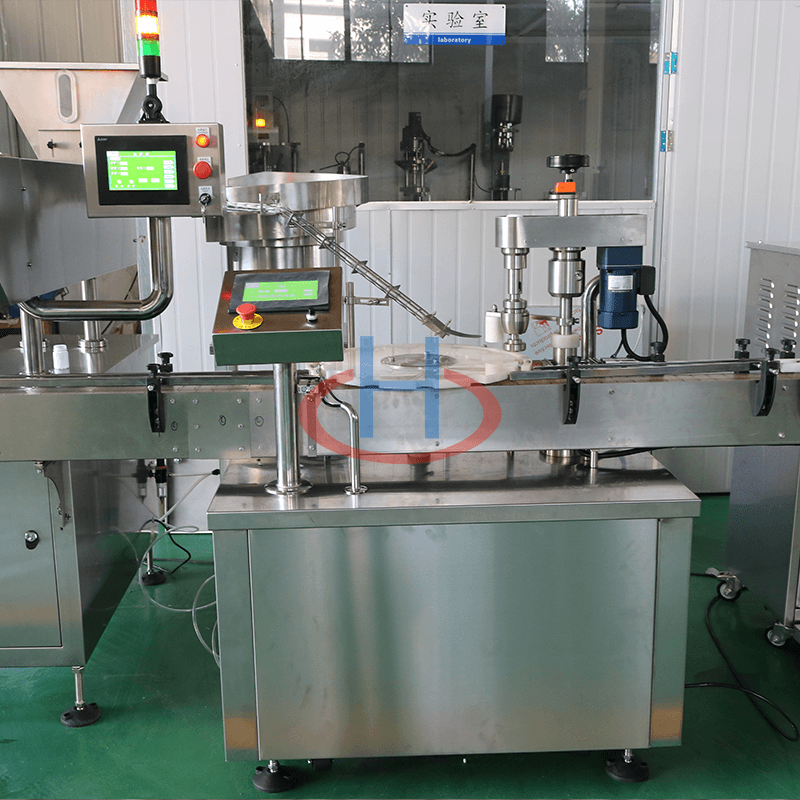

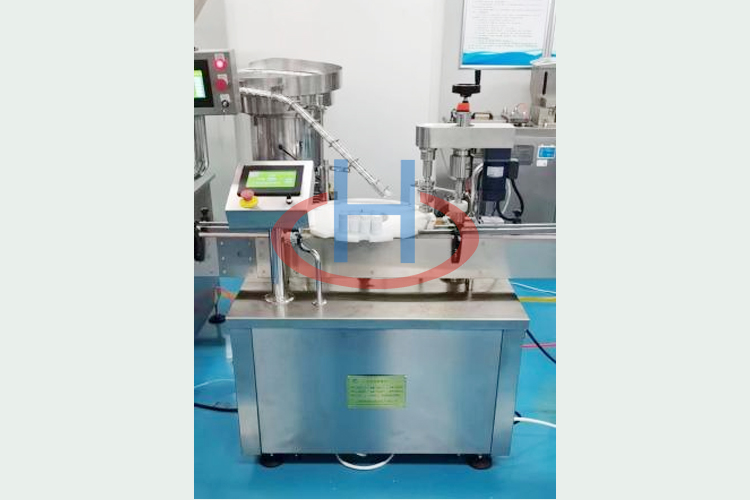

Cap installing and screwing machine
Machine Details

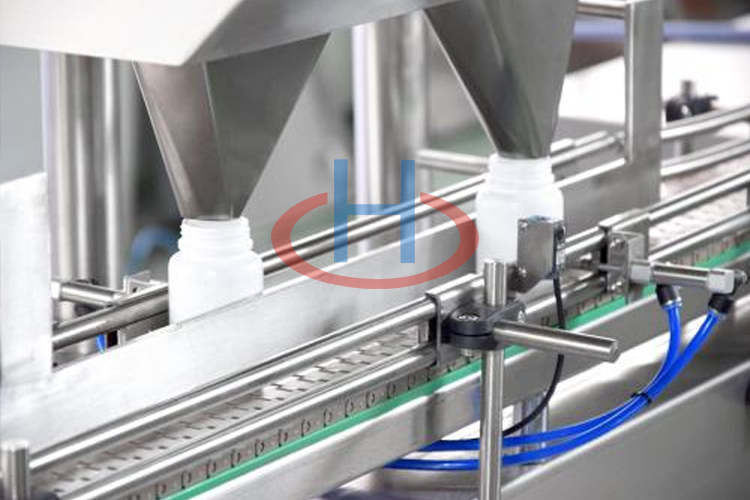

The products orderly fall into the storage warehouse and enter the bottle through the counting photoelectric box

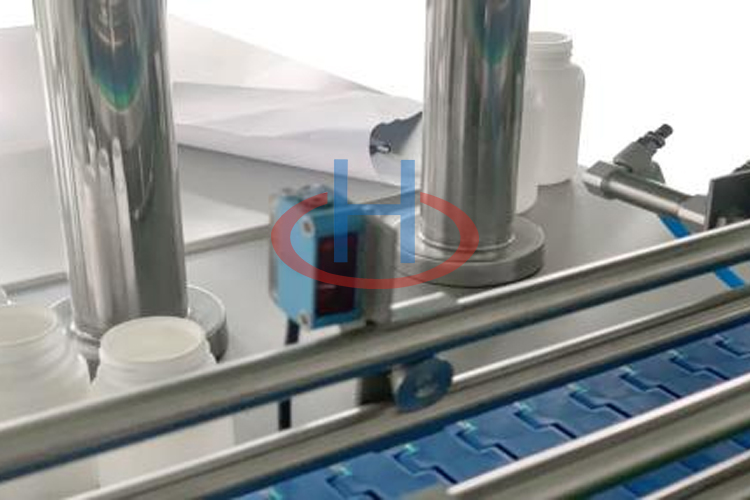

The photoelectric eye on the bottle will determine whether there is a bottle in the feeding port (it does not work if there is no bottle)

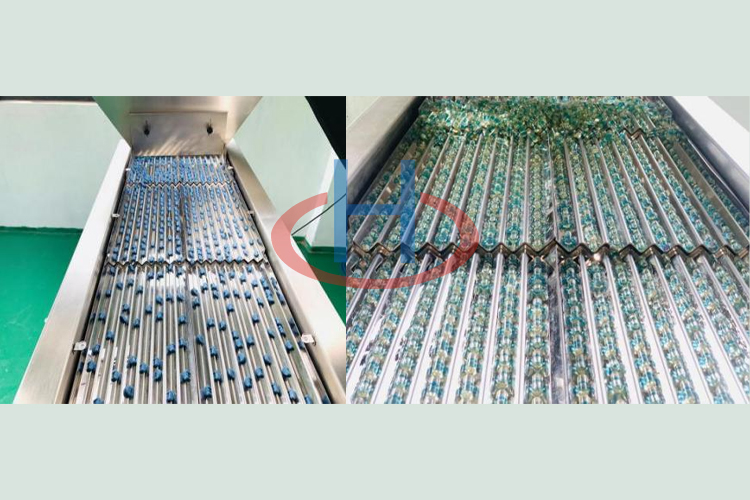

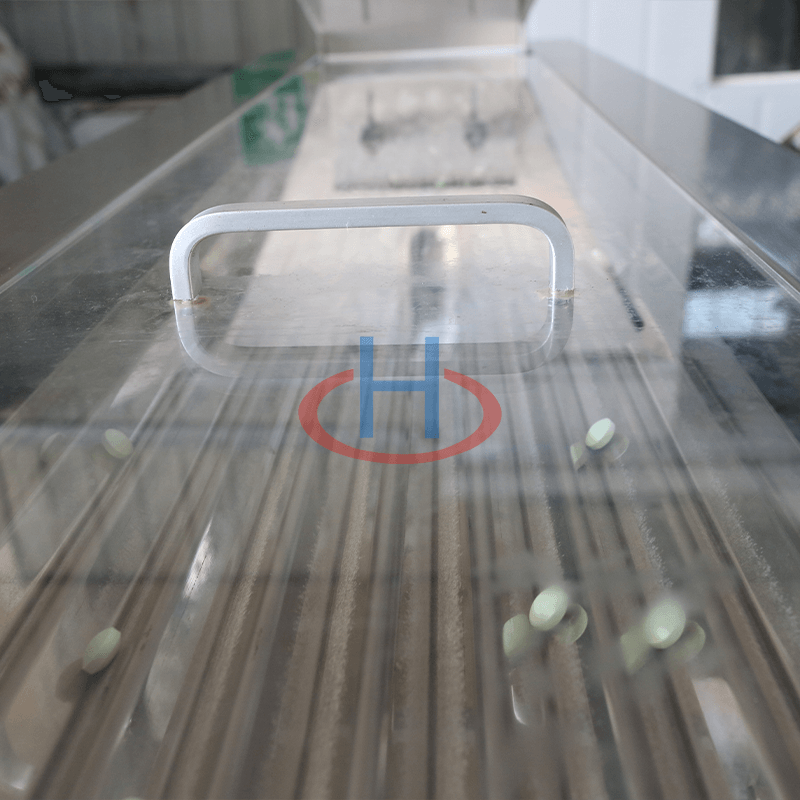

The products move in an orderly manner into the storage compartment through the vibration of the corrugated plate

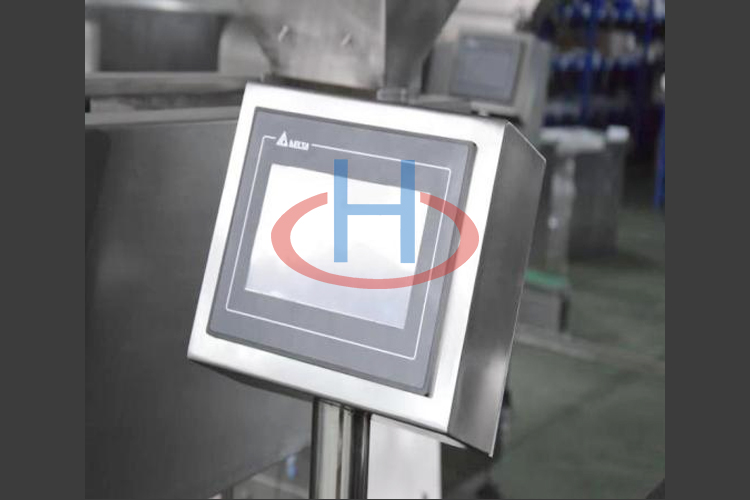

Most of the settings can be completed on the home screen
Technical Parameter
Applicable Products | Pills with a diameter below 20mm, compatible with capsules numbered 000-5, soft capsules, plain tablets with a diameter of 5.5-22mm, and irregular tablets, sugar coated tablets |
Production Speed | 25-80 bottles/minute (customized) |
Applicable Bottle Type | Bottle diameter 20-50mm, height 40-180mm |
Hopper Capacity | 50 L (Customizable) |
Power Supply | 220V/50HZ 0.9KW |
Air Consumption | 0.6Mpa 3.8L/min |
Production Line Dimension | 5000*1650*1700mm Length*width*height |
Weight | 950 KG |
