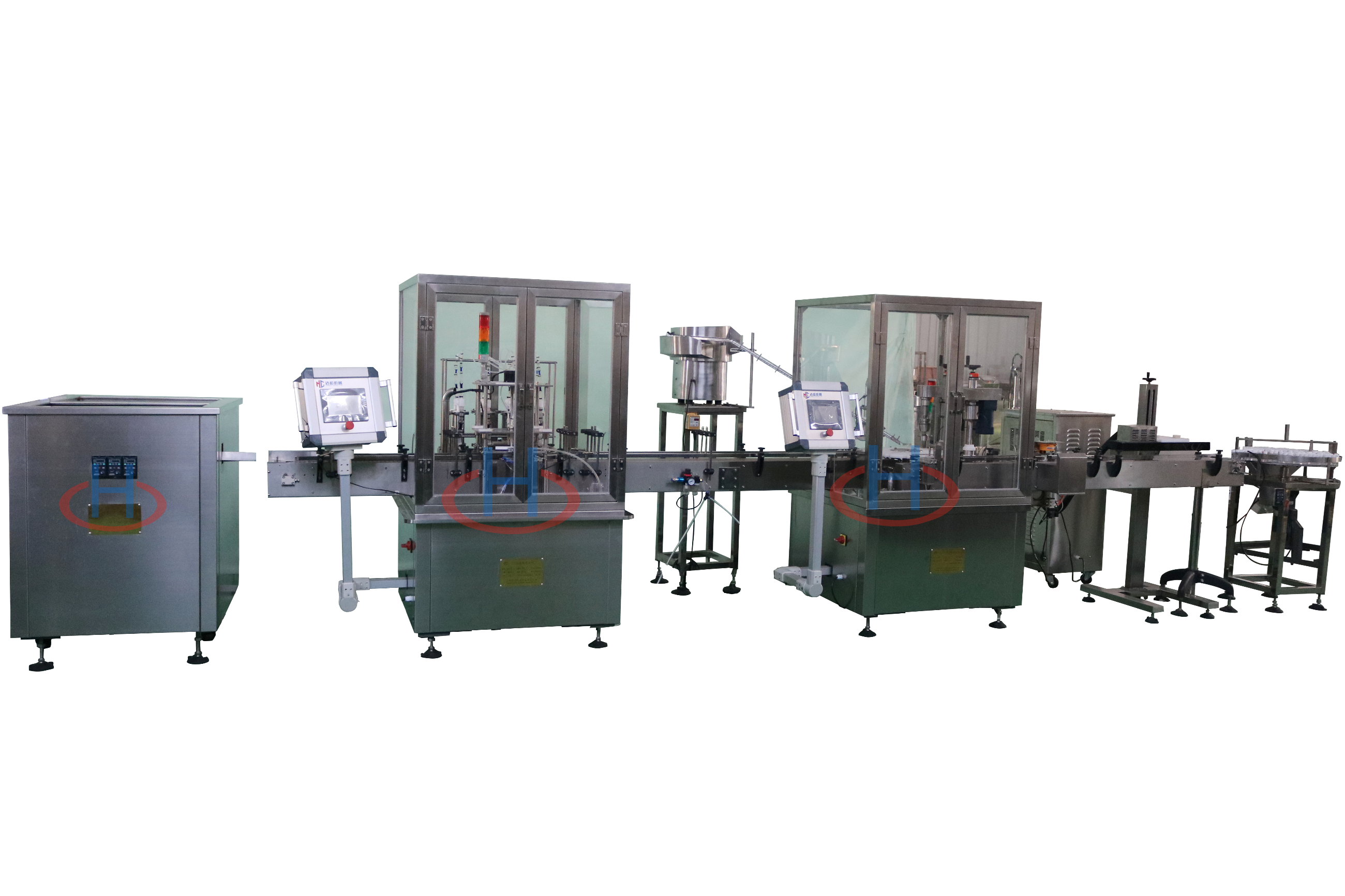

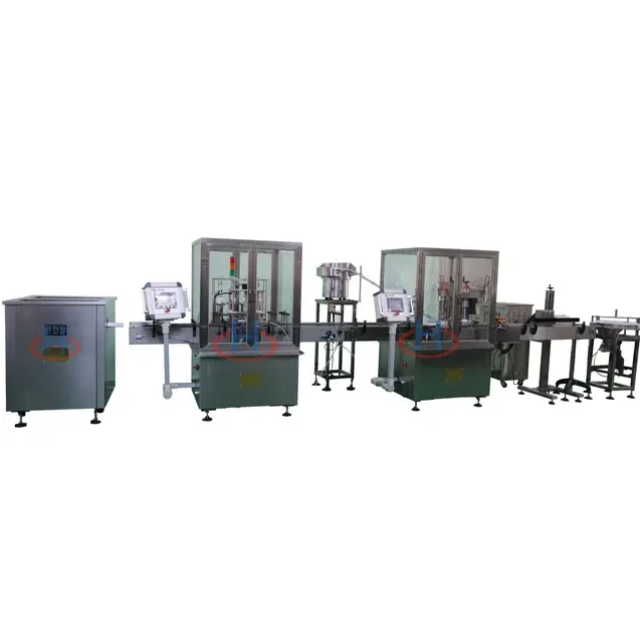

Our Spray Filling Production Line is a fully customizable, end-to-end liquid packaging solution engineered for manufacturers in pharmaceutical, food, and chemical sectors. Tailored to your unique bottle specifications, this integrated line combines automated bottle sorting, precision filling, dual-station capping, and vertical self-adhesive labeling into a seamless workflow. Designed to minimize manual intervention and maximize efficiency, our full-automatic spray bottle filling line delivers consistent high-volume output while adhering to strict global manufacturing standards. With intelligent anti-error mechanisms including no bottle no filling and no bottle no capping, it cuts material waste and ensures flawless batch production for all spray-format products.

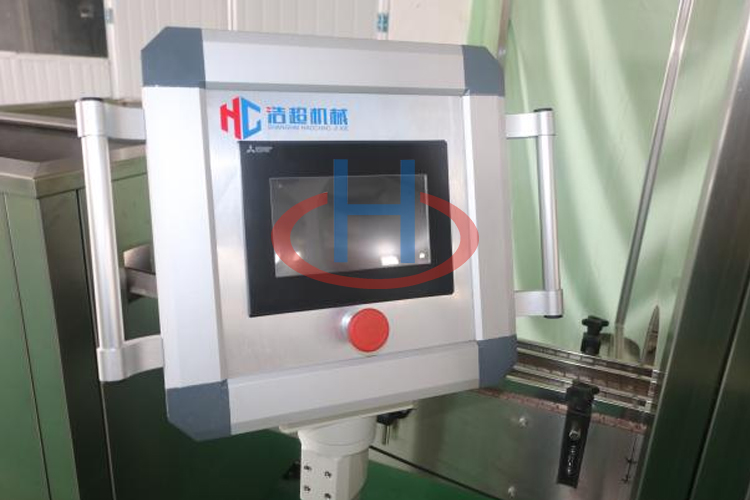

Our custom spray filling production line is powered by an advanced PLC system with a user-friendly full-color touch screen, enabling one-click parameter adjustment, real-time production monitoring, and multi-language support for global operations. The system stores 100+ product formulas for rapid batch changeover, drastically reducing downtime.

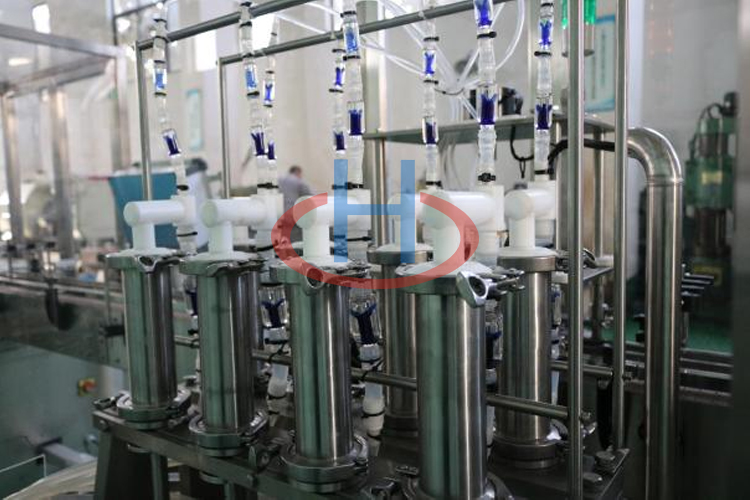

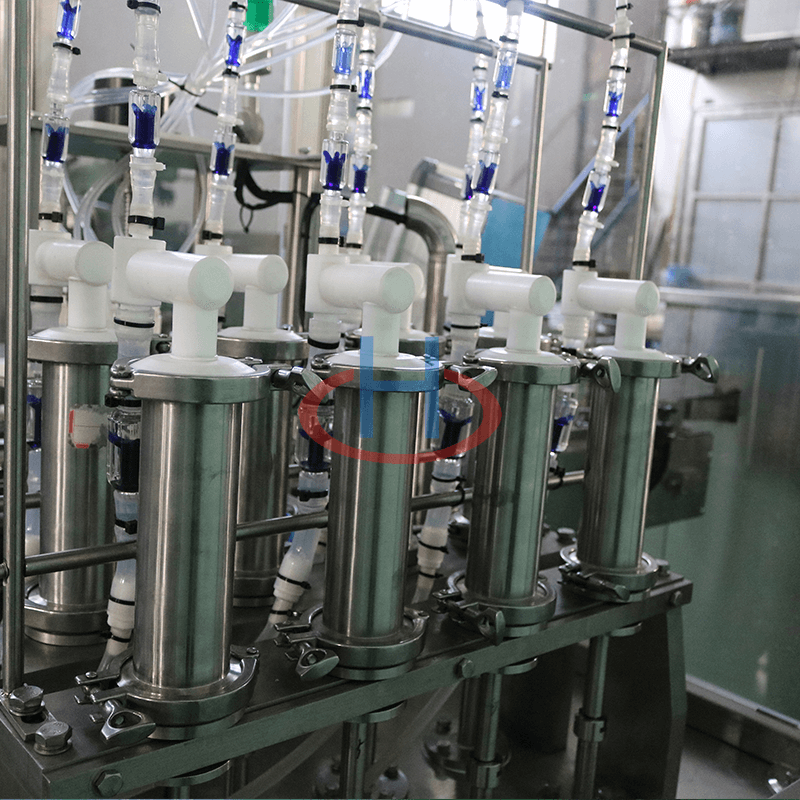

Equipped with food-grade 316L stainless steel filling pumps, the GMP-compliant spray filling equipment delivers ultra-precise quantitative filling, with zero cross-contamination and easy disassembly for cleaning. It handles a wide range of liquid viscosities while maintaining strict filling accuracy.

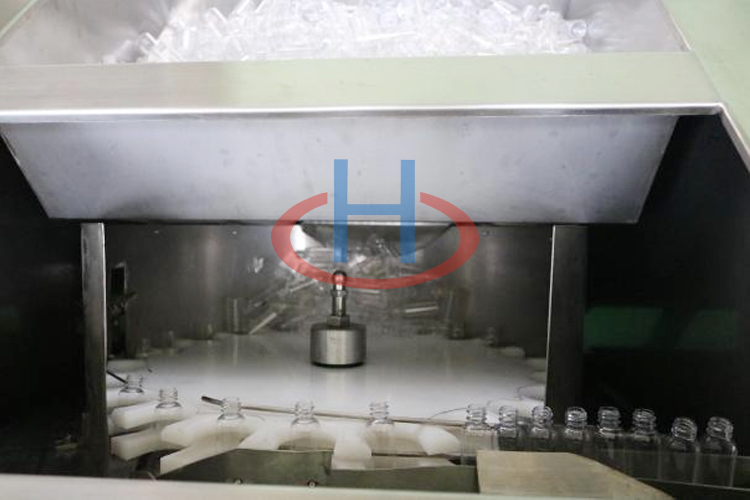

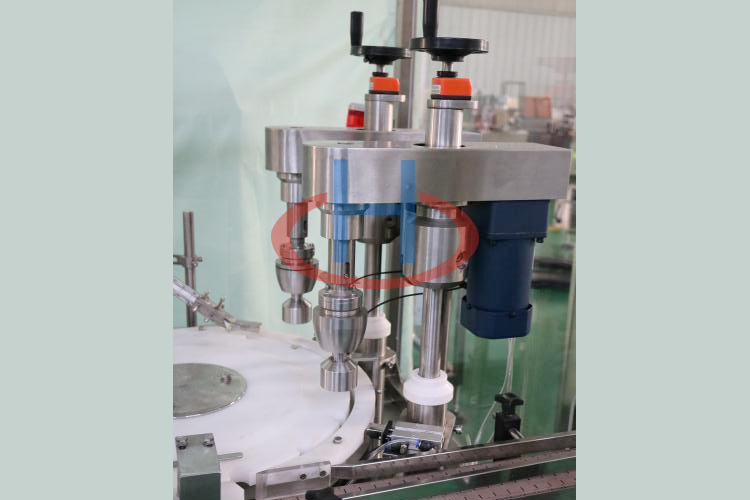

The integrated automatic bottle unscrambler sorts bottles at high speed after manual loading, while the dual-station capping system completes spray nozzle placement, outer cap sorting, and torque-adjustable screw capping in one continuous process.

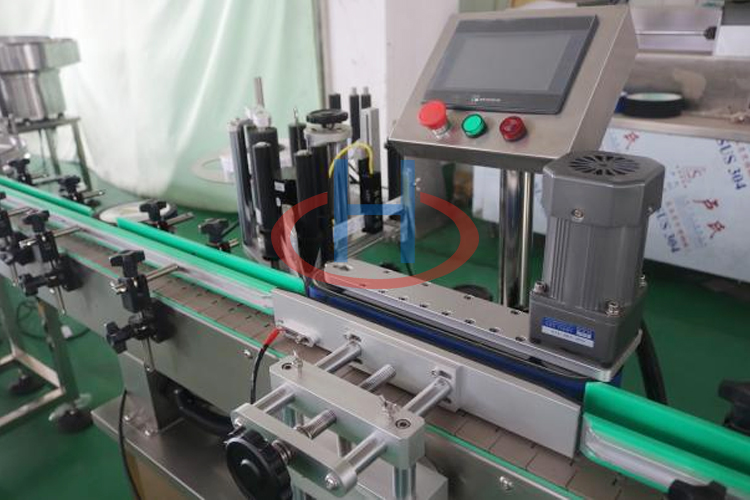

The vertical labeling module ensures fast, position-perfect labeling with zero deviation, supporting batch coding for full product traceability, a critical requirement for pharmaceutical and food clients.
Parameter | Standard Specification | Customization Range |
Applicable Bottle Volume | 50-100ml | 10-500ml (customizable by bottle type) |
Production Capacity | 80 bottles per minute | 20-120 bottles per minute (tailored to demand) |
Power Supply | 220V, 50Hz | Customizable for global voltage standards |
Whole Line Power | 4.5 kW | Adjusted based on integrated modules |
Overall Dimension (L×W×H) | 6100×1600×1700mm | Customized for workshop layout |
Our high-speed spray filling production line operates via a fully automated uninterrupted workflow. Operators load bottles into the storage bin, and the unscrambler automatically sorts and aligns bottles for downstream processing. Next, the linear filling machine delivers quantitative filling, with no bottle no filling protection to eliminate waste. The dual-station system then sorts nozzles and caps, completing nozzle installation, cap placement, and torque-controlled screw capping in a single continuous step. Following capping, the vertical labeling machine applies labels with pinpoint accuracy, with optional batch coding for full product traceability. Fully processed spray bottles are then discharged, with zero manual intervention throughout the core production cycle.
This versatile Spray Filling Production Line is ideal for manufacturers across regulated sectors. It is fully optimized for the pharmaceutical industry, supporting production of nasal sprays, throat sprays, medical disinfectant sprays with full GMP compliance. For the food & beverage industry, it accommodates edible oil sprays, seasoning sprays, food-grade preservative sprays with food-safe material construction. It also serves the chemical & daily chemical industry, including household disinfectant sprays, cosmetic setting sprays, hair care sprays, industrial lubricant sprays, as well as the agrochemical industry for foliar sprays, insecticide sprays, plant nutrient sprays with corrosion-resistant configurations available.
Our industrial spray filling production line is manufactured in an ISO9001:2015 certified facility, fully compliant with GMP requirements. All product-contact parts use 316L stainless steel, with the main frame made of 304 stainless steel for long-term corrosion resistance. We hold multiple utility model patents for core filling technology, and every line undergoes rigorous full-load testing before shipment, with lifetime maintenance and global after-sales support provided for all partners.
Our Spray Filling Production Line is fully customizable to your bottle shape, volume, production capacity, and workshop layout. We offer comprehensive OEM/ODM support, including custom module integration for bottle washing, sterilization, and collection turntables, multi-language control system customization, and private labeling services. Our in-house engineering team designs tailored solutions fully aligned with your production goals and regional regulatory requirements.
Yes, the entire line is custom-engineered to match your specific bottle dimensions, with adjustable filling volumes and capping parameters for round, flat, and special-shaped spray containers.
Standard lines have a 20-30 working day lead time, while fully customized lines have a 30-45 working day lead time, depending on the scope of customization.
Absolutely. The line is designed in full compliance with GMP requirements, with sanitary construction, easy-to-clean components, and full traceability features built specifically for pharmaceutical manufacturing workflows.
