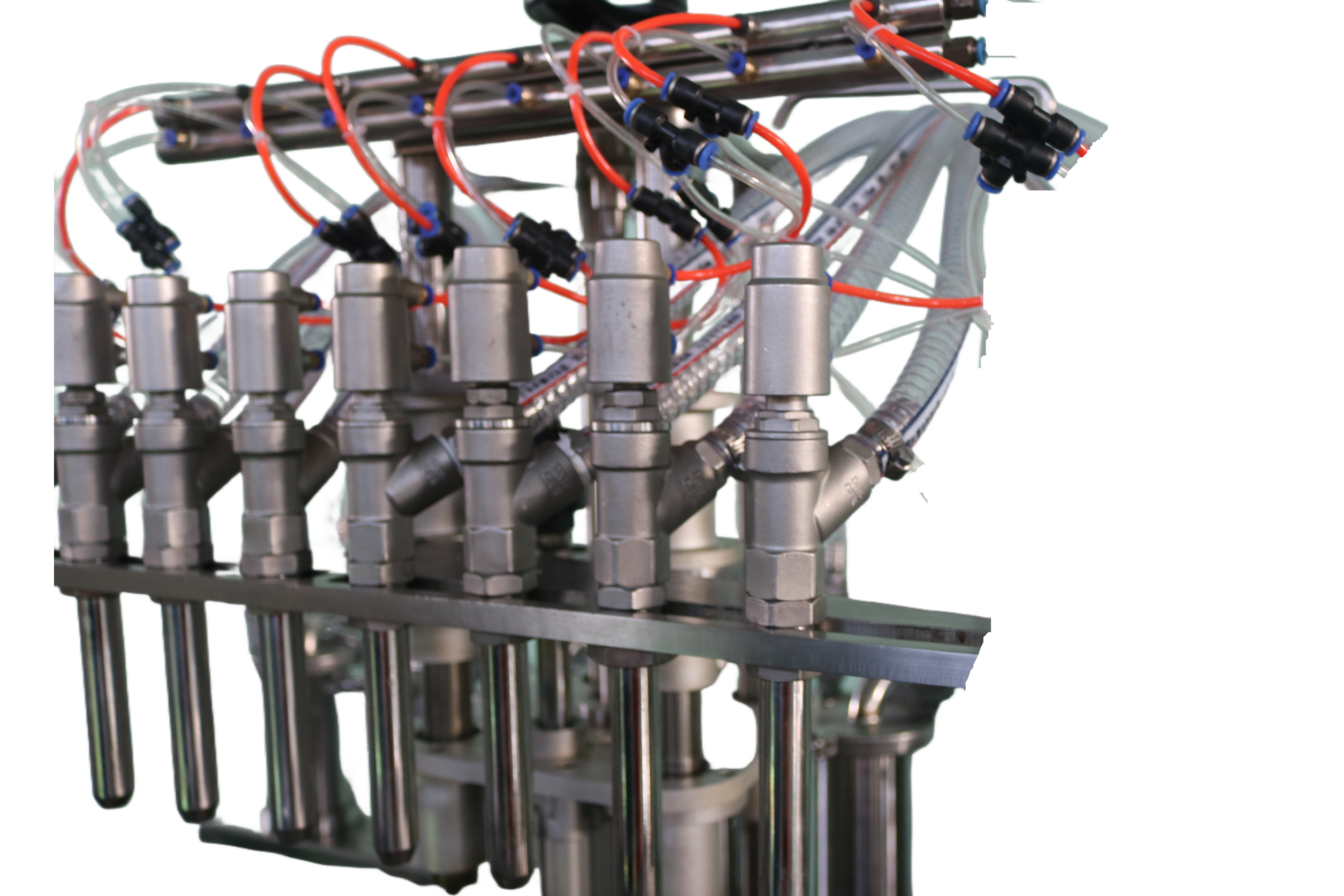

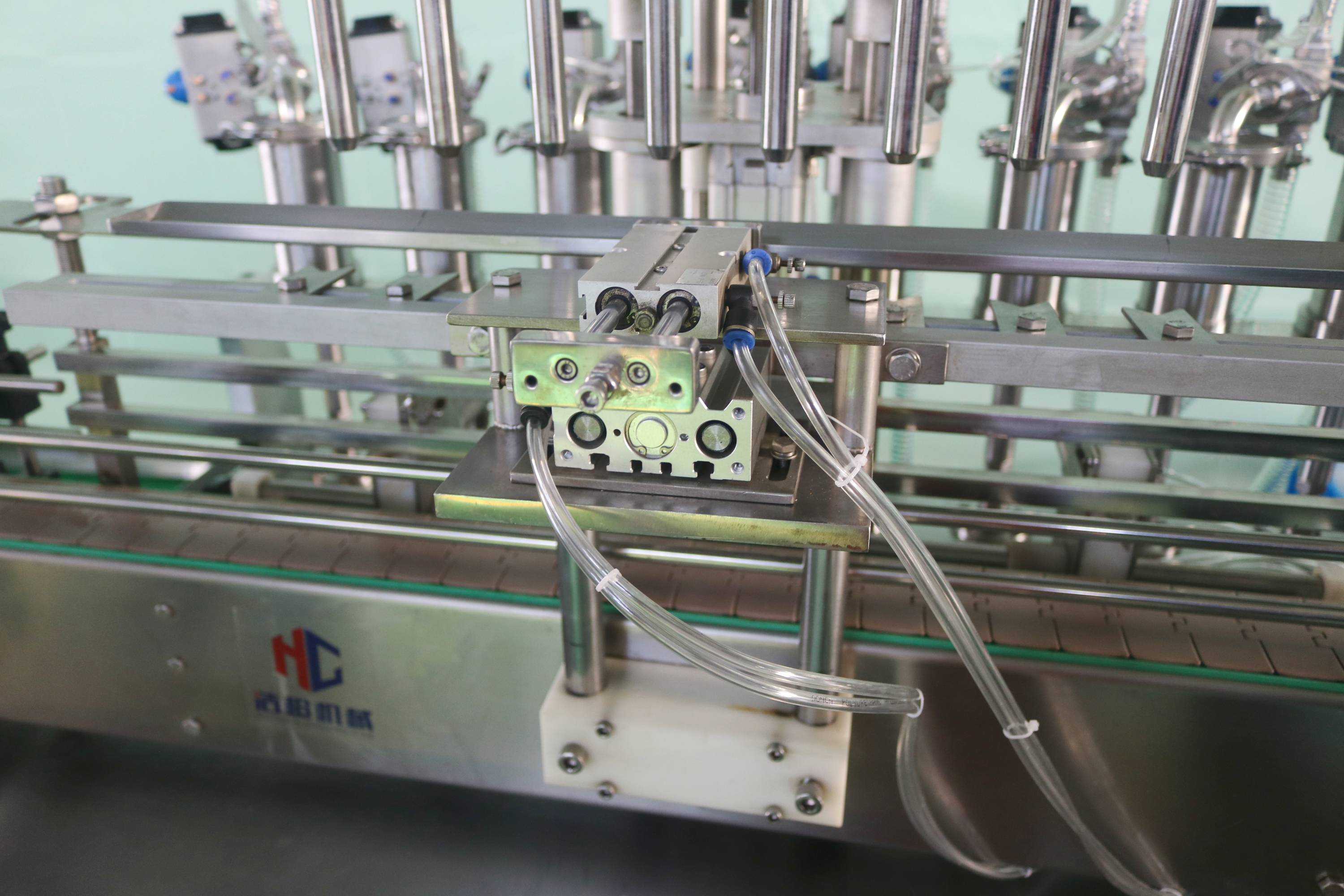

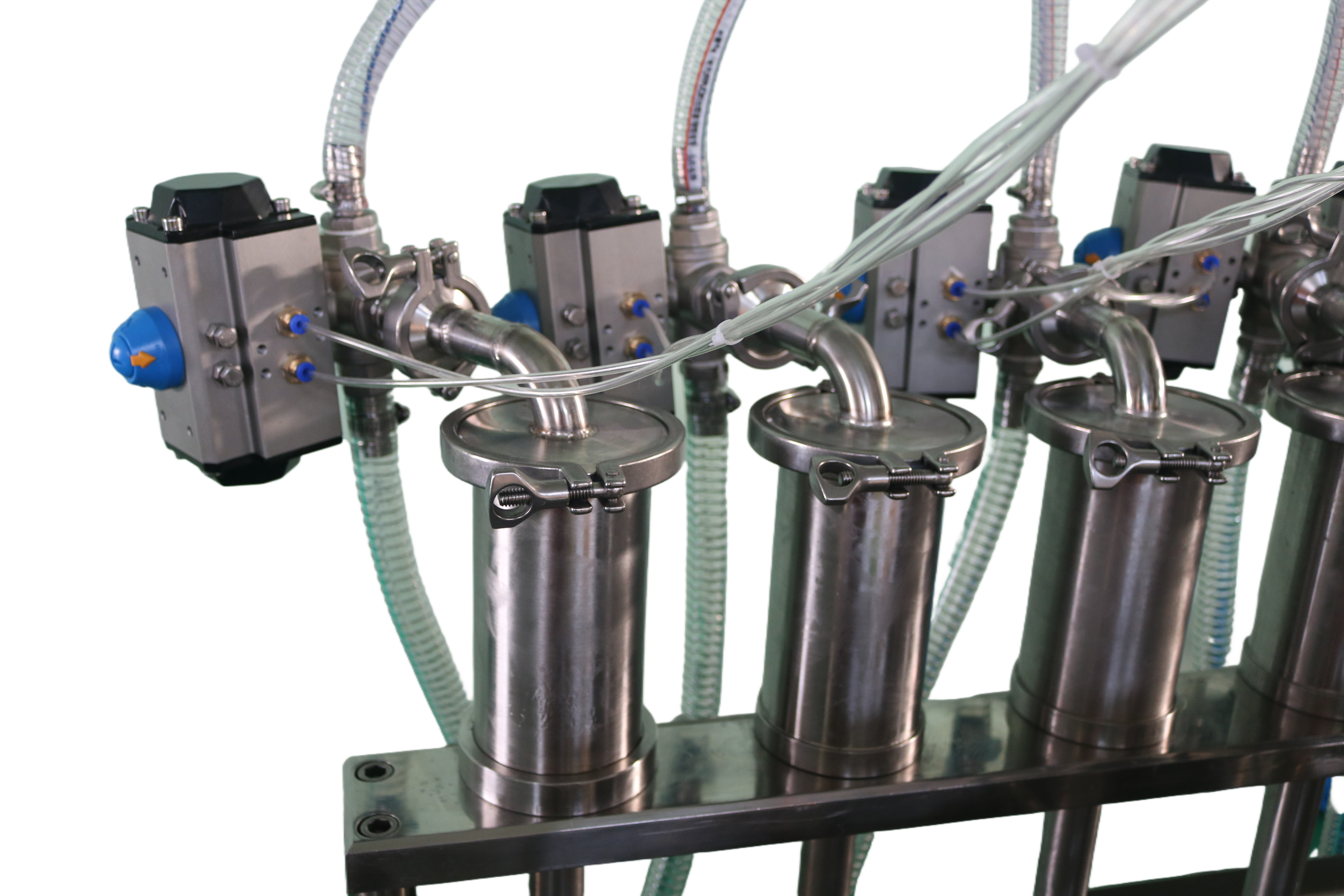

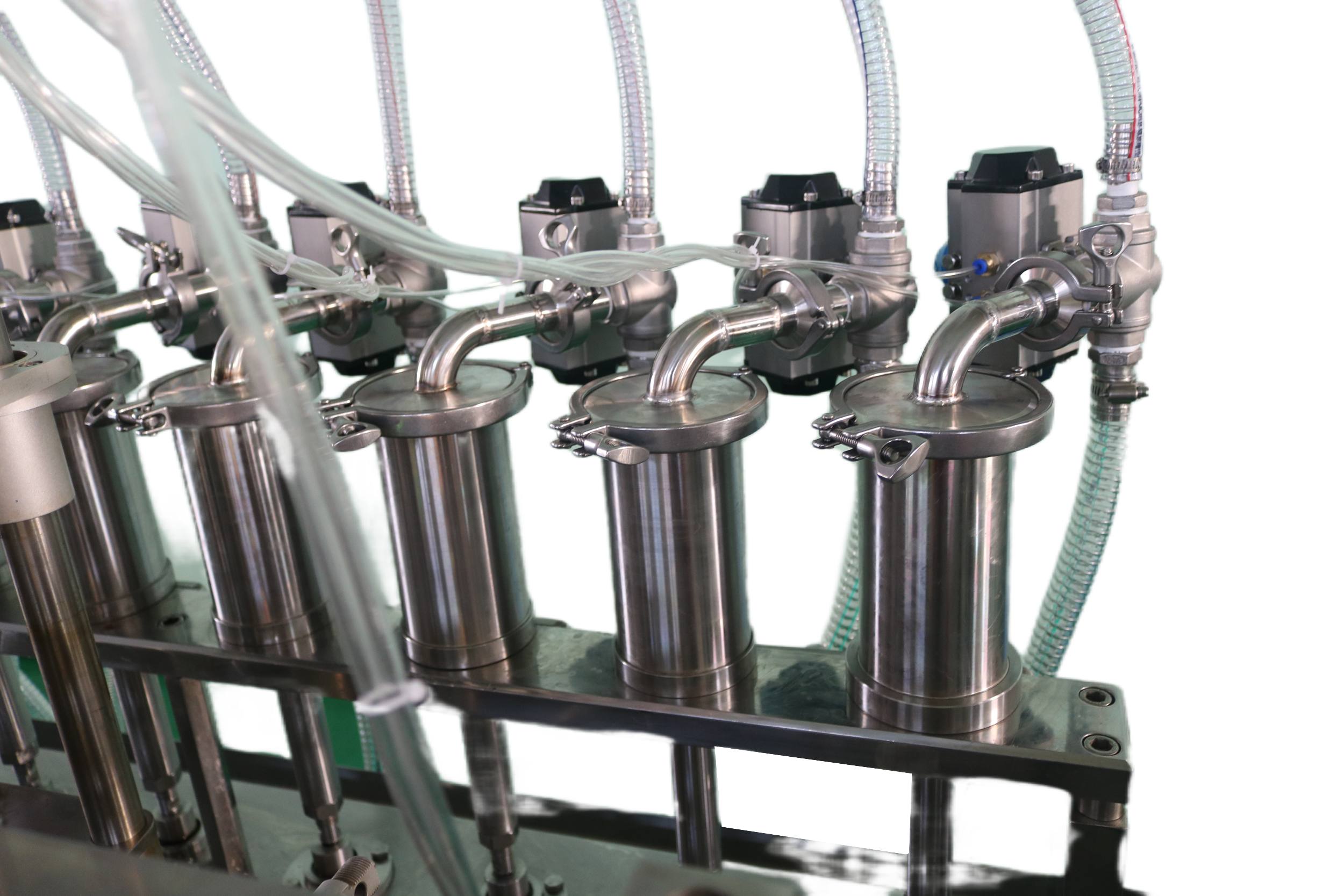

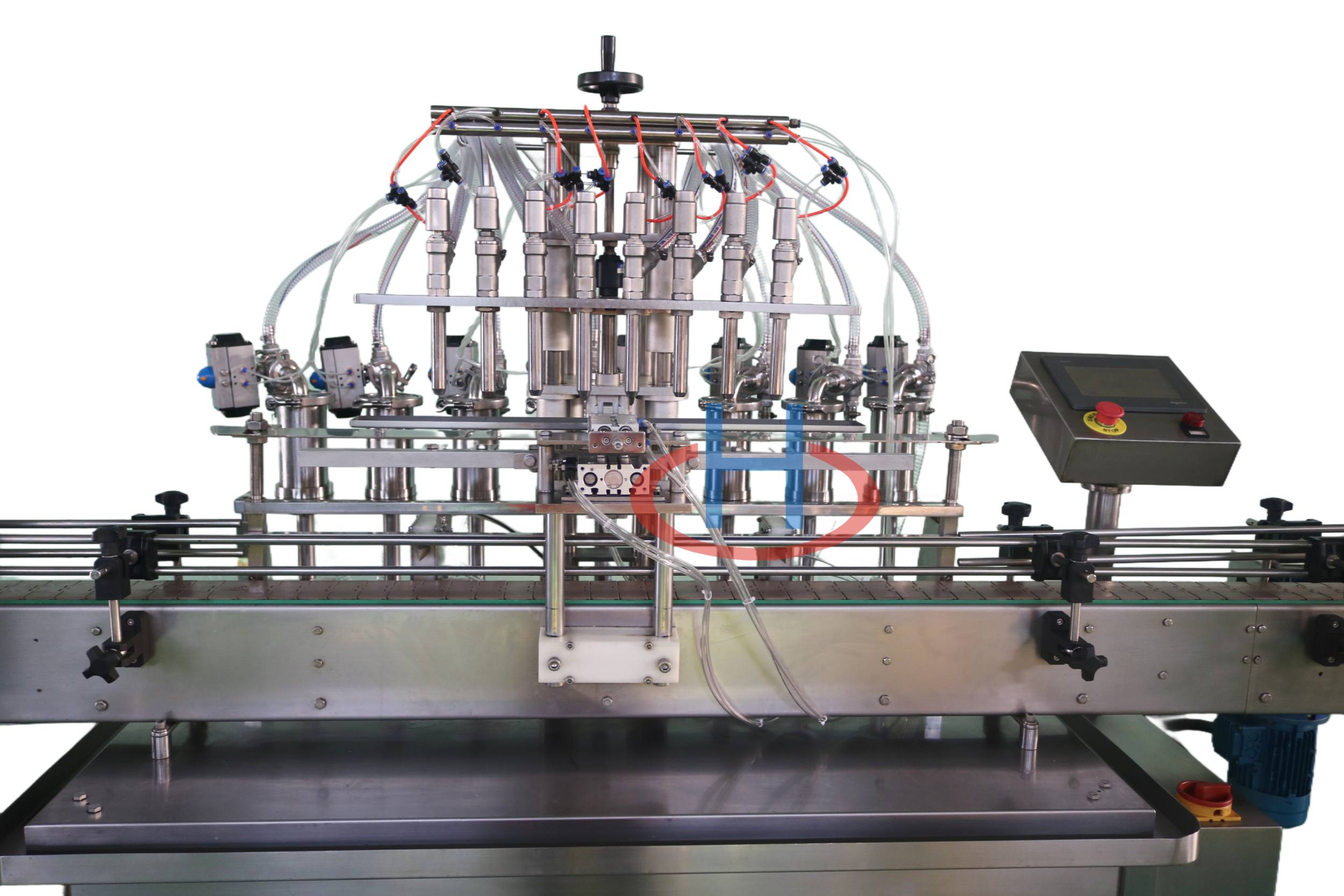

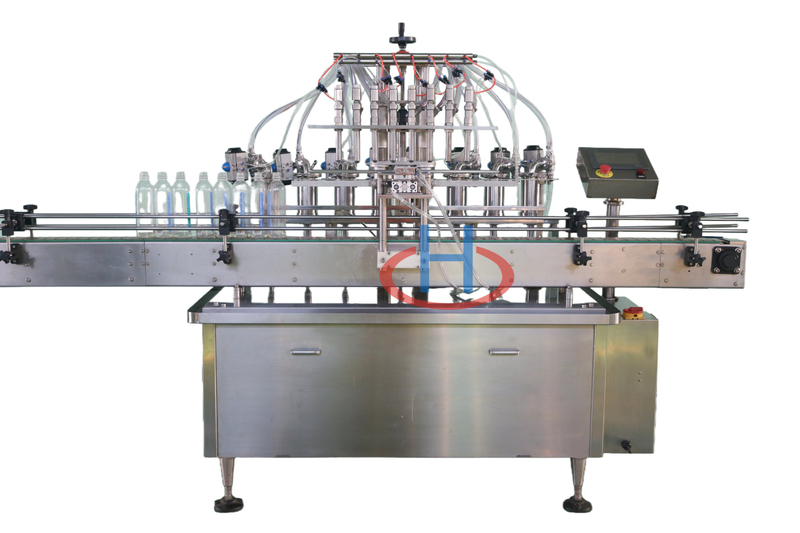

8-head Linear Liquid Filling Machine

Features

1. Adopting three-level management permissions.

2. All electrical components are from well-known brands.

3. PLC control for human-machine interface.

4. Variable frequency control, adjustable production speed, and automatic counting.

5. Automatic shutdown function, no filling without bottles.

6. Made of SUS304 and 316L stainless steel.

7. Plunger pump filling.

Technical Specifications

Range of dosing: 5-1000ml

Filling tolerance: Customization

Production capacity: 80 bottles/min

Filling method: plunger pump filling

Power supply: 220V/50Hz

Power: 2.0kw

Machine weight: 800kg

Dimensions: 2100mmL * 1100mmW * 1700mmH

Packing And Delivery

Key Features

• Servo Motor Control: Perfect for filling thicker liquids like lotions and detergents, ensuring precision and consistency.

• High-Speed Filling: Achieve speeds of 60-80 bottles per minute, thanks to the nozzle that follows the bottle for faster and accurate filling.

• Precision and Accuracy: Filling accuracy is maintained at ±0.3%, minimizing wastage and ensuring quality control.

• Versatile Capacity: Supports filling volumes from 500ml to 5000ml, adaptable to various production needs.

• Robust Build: The frame is constructed from 304# stainless steel, offering durability and resistance to corrosion.

• User-Friendly Interface: PLC and touch screen controls with customizable languages for seamless operation.

• Automatic Detection: Electric eye technology detects and manages bottle flow, optimizing efficiency.

• Enhanced Productivity: Store and retrieve parameters quickly when changing products to boost efficiency.

• Advanced Features: Submerged filling addresses foaming issues, while pressure and liquid level detection maintain stable operation.

Advantages

• Wide Application Range: Perfect for thicker liquids like lotions and detergents, ensuring versatility across different product types.

• Highly Accurate: Powered by a servo motor, it provides precise filling, reducing errors and enhancing product quality.

• Stainless Steels: Built with durable materials to withstand rigorous use and ensure longevity.

• Filling Quickly: The tracking nozzle follows bottles during filling, boosting speed and productivity.

• High Efficiency: Customizable nozzles and PLC control panel streamline operations, saving time and labor costs.

• Easy to Operate: User-friendly interface with remote monitoring capabilities simplifies usage and enhances control.

Applications

• Versatile Applications: Ideal for filling thicker liquids such as lotions, liquid soap, and laundry detergents. Perfectly suited for sectors including chemical, cosmetic, and food industries.

• Diverse Filling Materials: Efficiently handles a variety of substances including liquid soap, oil, viscous liquids, and chemicals. Also compatible with water, juice, syrup, and shampoo.

• Enhanced Accuracy: The servo motor control allows precise adjustments, ensuring each filling cycle is accurate. This capability significantly reduces production errors and enhances filling precision.

• Innovative Tracking Feature: Unlike traditional machines, this model's tracking capability allows filling nozzles to follow moving bottles, optimizing efficiency and reducing waste.

• Customizable Solutions: Each nozzle can be independently controlled, offering flexibility and customization to meet your specific production needs.
