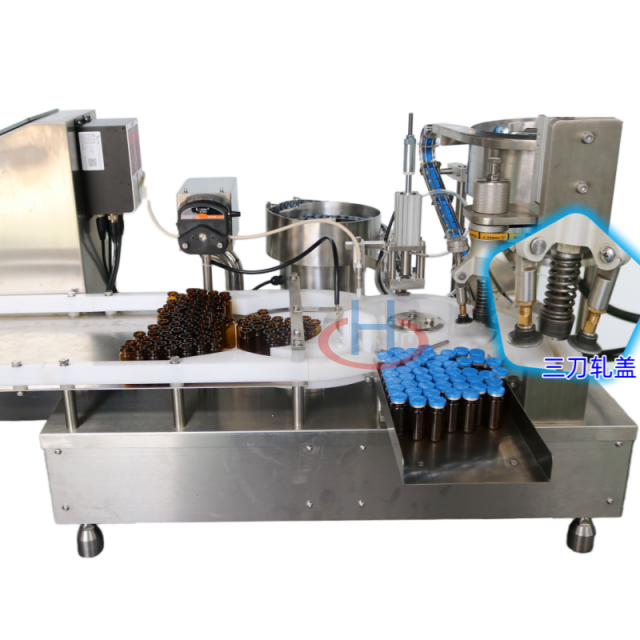

Desktop Small Vial Filling and Capping Machine
Function and Introduction:

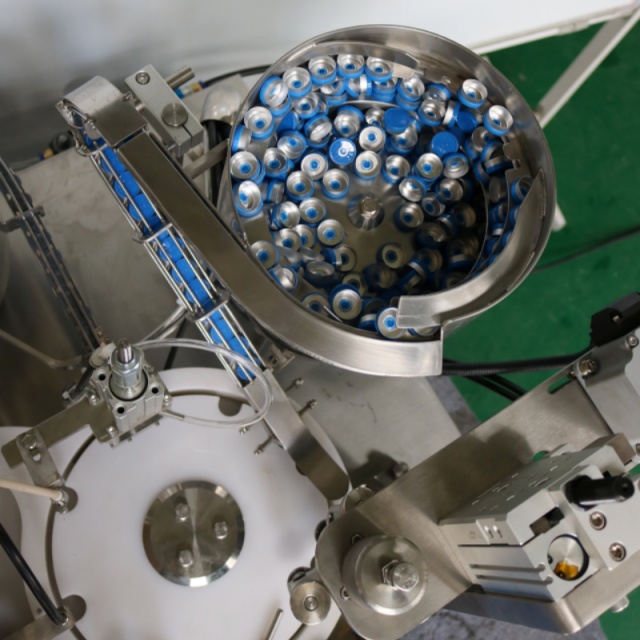

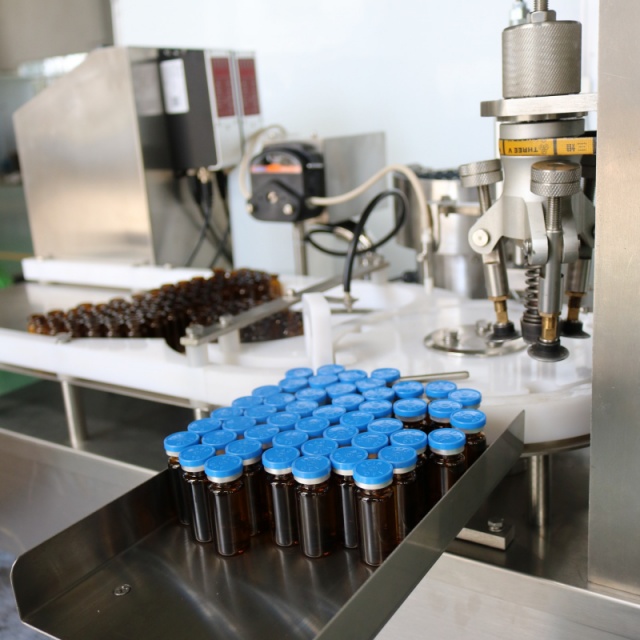

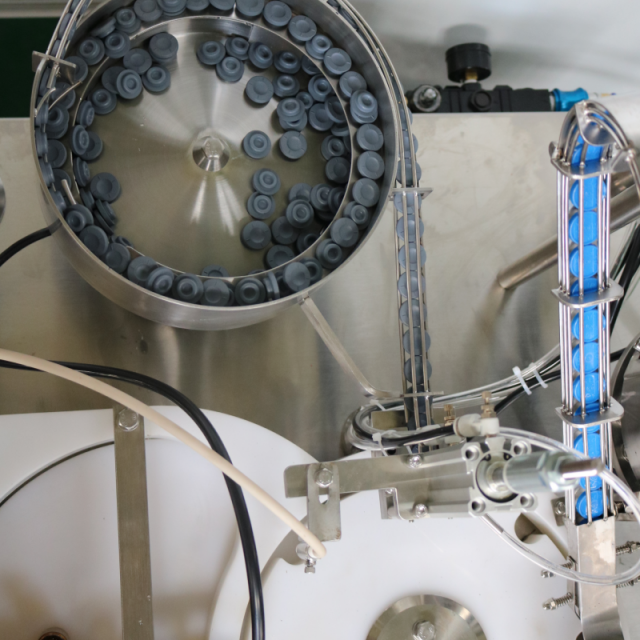

The desktop vial filling and capping machine is a small equipment customized according to customers' non-standard bottles. It is designed for laboratories, research and development institutions, and small batch production scenarios, integrating rotary table bottle feeding, positioning filling, automatic plugging, capping, and three blade cap rolling. Ensure the sealing is firm and aesthetically pleasing. The whole machine adopts 304 stainless steel body and food grade contact materials.
Features:
1. All electrical components are made of well-known brands.

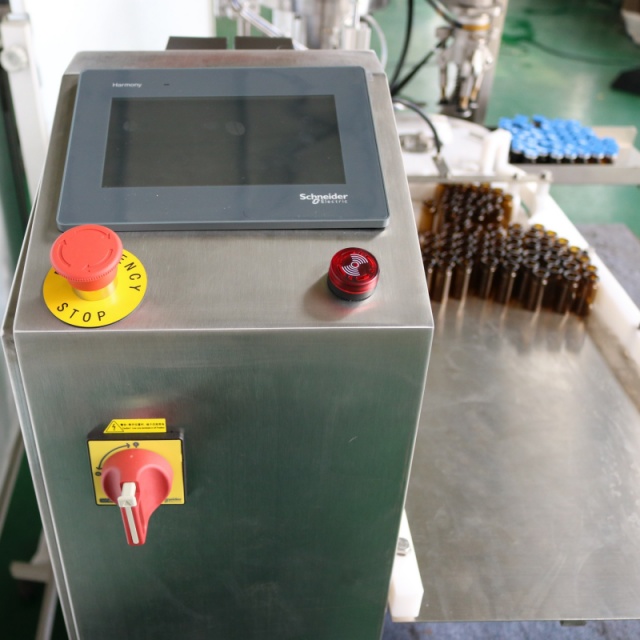

2. The operation of this machine is intuitive and convenient, the touch screen interface is simple and clear, and the parameter setting is done in one step.
3. No bottle, no filling, precise measurement.
4. Outsourced with 304 stainless steel.
Technical Specifications:
Model | HCGZ-20 |
Dosing Range | 2-20ml |
Filling Nozzle | 1 nozzle--2 nozzles |
Production Capacity | About 1800 bottles per hour |
Power Supply | 220V/50Hz |
Wattage (for Reference) | 2.3 kw |
Machine Weight (for Reference) | 200 kg |
External Dimensions (for Reference) | L1200*W800*1250mm The size of the equipment can be customized according to the actual production site |
Main configuration:
Item | Part Name | Brand | Remark | |
1 | Power Switch | Schneider |  | |
2 | Contactor | Schneider | | |
3 | Relay | Schneider | | |
4 | Touch Screen | Kunlun Tongtai or Schneider (optional) | | |
5 | PLC | Mitsubishi, Japan |  | |
6 | Optical Fiber Amplifier | Autonics |  | |
7 | Main Motor | ZHONGDA/JSCC(optional） |  | |
8 | Cap Rolling | Three Blade Rolling |  | |

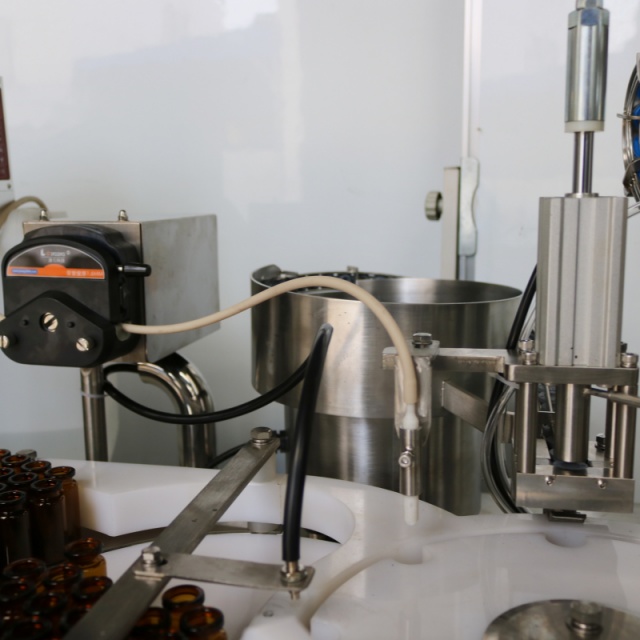

9 | Filling Pump | Peristaltic Pump |  | |
10 | Speed Controller | ZHONGDA |  |
