Our Single Station Ink Glue Dye-Colour Bottle Filling Machine is a compact, high-precision standalone filling solution designed for manufacturers specializing in small to medium-batch production of ink, glue, dye, and colourant products. Custom-built for 5-100ml small-format bottles, this all-in-one machine integrates liquid filling, plug inserting, cap screwing, and finished product discharging into a single space-saving workstation. Featuring a peristaltic pump filling system and lifting torque-adjustable capping mechanism, it delivers consistent, error-free performance with core safety features including no bottle no filling and no bottle no capping. Built for versatility, it serves regulated industries including pharmaceuticals, daily chemicals, food, and stationery manufacturing, with a robust stainless steel build for long-term reliable operation.
The core of our ink bottle filling machine is a high-precision peristaltic pump filling system, ensuring zero cross-contamination between batches – ideal for colourant and dye products requiring strict colour separation. The system delivers a filling accuracy of ±0.3%, minimizing material waste and ensuring consistent fill volumes across every bottle.

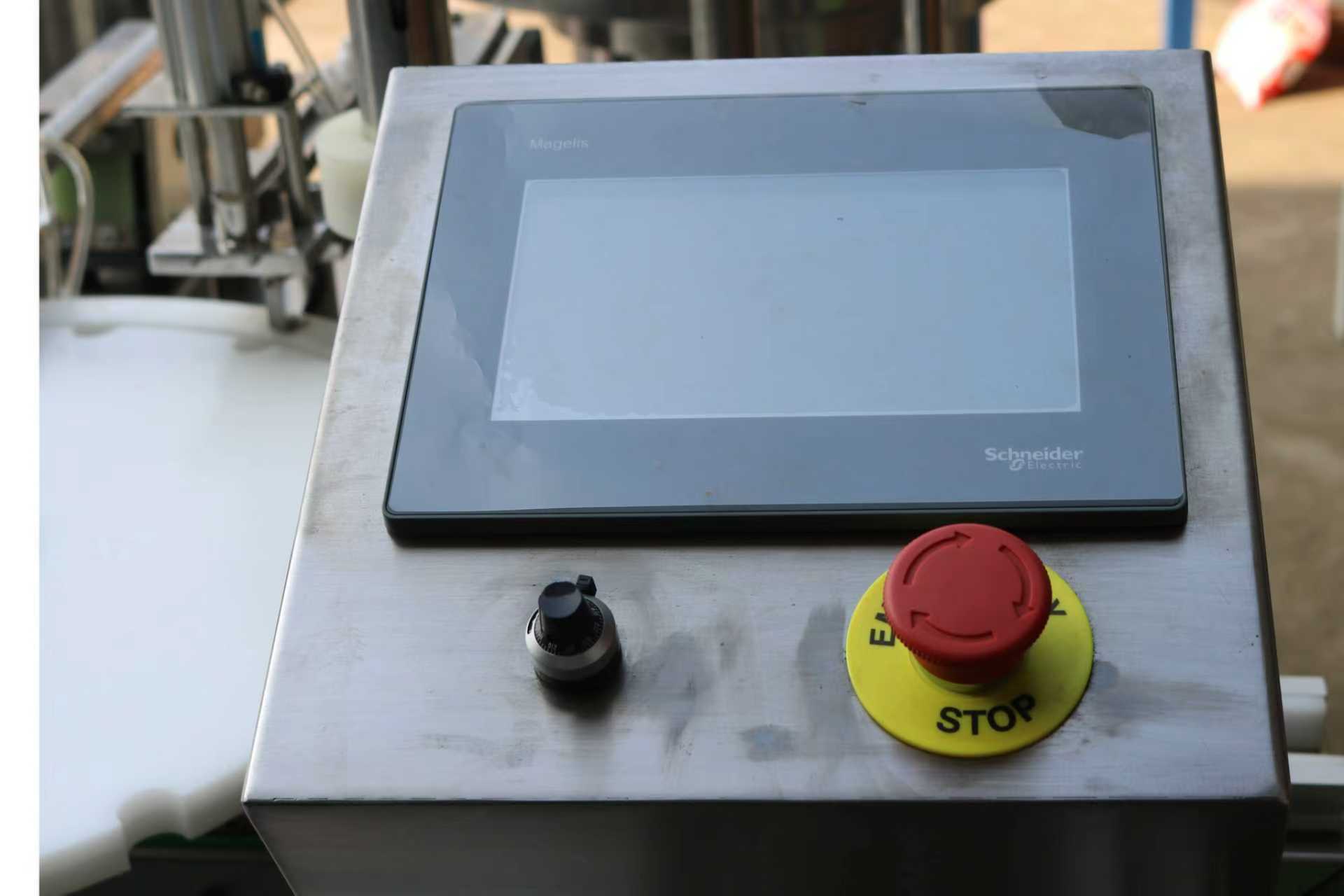

Powered by a Schneider PLC control system with a user-friendly Magelis HMI, our glue filling equipment offers both manual and automatic working modes, with three-level authority management for secure production. It records real-time shift output and total production data, with frequency conversion control for adjustable production speed and automatic counting.
The machine’s outer shell is fabricated from 304 food-grade stainless steel, with all product-contact parts made from 316L stainless steel for corrosion resistance and sanitary compliance. Quick-change fittings on all cleanable components reduce downtime for cleaning and product changeover.
Equipped with advanced electric eye detection, our dye colour bottle filling machine features no bottle no filling and no bottle no capping protection, preventing material waste and equipment damage. The lifting screw capping system has adjustable torque, ensuring consistent seal integrity without damaging bottle necks or caps.
Parameter | Standard Specification | Customization Range |
Model | HCY GX-30 | Customizable for special requirements |
Applicable Bottle Volume | 5-100ml | 2-250ml (tailored to bottle dimensions) |
Production Capacity | 30-50 bottles per minute | Adjustable based on product viscosity |
Filling Method | Peristaltic pump filling | Customizable for high-viscosity materials |
Total Power | 2 kW | Adjusted for custom configurations |
Machine Weight | 700 kg | Varies with custom modules |
Overall Dimension (L×W×H) | 1550×1000×1550mm | Customized for workshop space |
Our single station small bottle filling machine operates via a streamlined workflow optimized for small to medium batch production. Bottles are loaded manually or via an optional automatic feeder, with electric eye detection to confirm bottle presence before any process initiates. The peristaltic pump then delivers pre-set quantitative filling, with no bottle no filling activation to eliminate material waste. The system automatically inserts inner plugs if required and places outer caps onto the bottle neck with precise positioning. The lifting screw capping mechanism then tightens caps with fully adjustable torque, ensuring consistent seal integrity without bottle damage. Fully processed bottles are automatically discharged, ready for final packaging and distribution.
This versatile Single Station Ink Glue Dye-Colour Bottle Filling Machine is the perfect fit for manufacturers across diverse sectors. It is fully optimized for the stationery industry, supporting production of fountain pen ink, marker pen refills, drawing ink, and art supply colourants with zero cross-contamination between colour batches. For the daily chemical & cosmetic industry, it accommodates liquid glue, fabric dye, nail polish, cosmetic colourants, and hair dye products, with adjustable filling parameters for varying viscosities. It also serves the pharmaceutical industry for small-dose liquid reagents, oral liquid preparations, and topical dye products with full sanitary manufacturing compliance, the food industry for edible food colouring, liquid flavourings, and concentrated seasonings with food-grade material construction, and the chemical industry for industrial dyes, pigment concentrates, coating additives, and specialty chemicals with optional explosion-proof configurations available.
Our small batch liquid filling machine is manufactured in our ISO9001:2015 certified facility, with strict quality control at every production stage. All electrical components are sourced from globally recognized brands including Schneider, ensuring long-term stable operation in high-volume production environments. We hold multiple utility model patents and software copyrights for our proprietary filling control systems, with every machine undergoing full-load testing before shipment. We provide lifetime maintenance, global after-sales support, and comprehensive operator training for all partners.
We offer full end-to-end customization for our Single Station Ink Glue Dye-Colour Bottle Filling Machine to match your unique production requirements. Customization options include adjustable filling volume ranges, explosion-proof configurations for chemical production, automatic bottle feeding and discharging modules, multi-language HMI interfaces, and custom capping systems for special cap types. We also provide comprehensive OEM/ODM support, including private labeling, custom equipment branding, and tailored control system programming to fully align with your existing production workflow.
Yes, the machine can be customized with upgraded peristaltic pumps and specialized filling nozzles to handle high-viscosity materials including thick glue, pigment concentrates, and paste-like colourants.
The standard peristaltic pump system delivers a filling accuracy of ±0.3%, ensuring consistent fill volumes across every bottle and minimizing costly material waste for high-value colourant and chemical products.
Absolutely. We offer custom integration services, including automatic bottle feeding and discharging modules, to seamlessly connect the machine to your existing packaging line workflow with minimal downtime.
Looking for a compact, reliable, high-precision filling solution for your ink, glue, dye, or small-batch liquid products? Our Single Station Ink Glue Dye-Colour Bottle Filling Machine is engineered to boost your production efficiency, reduce waste, and ensure consistent product quality. Contact us today for a free consultation, custom quote, and tailored equipment design – we’re your trusted global partner for small-format liquid filling solutions.
