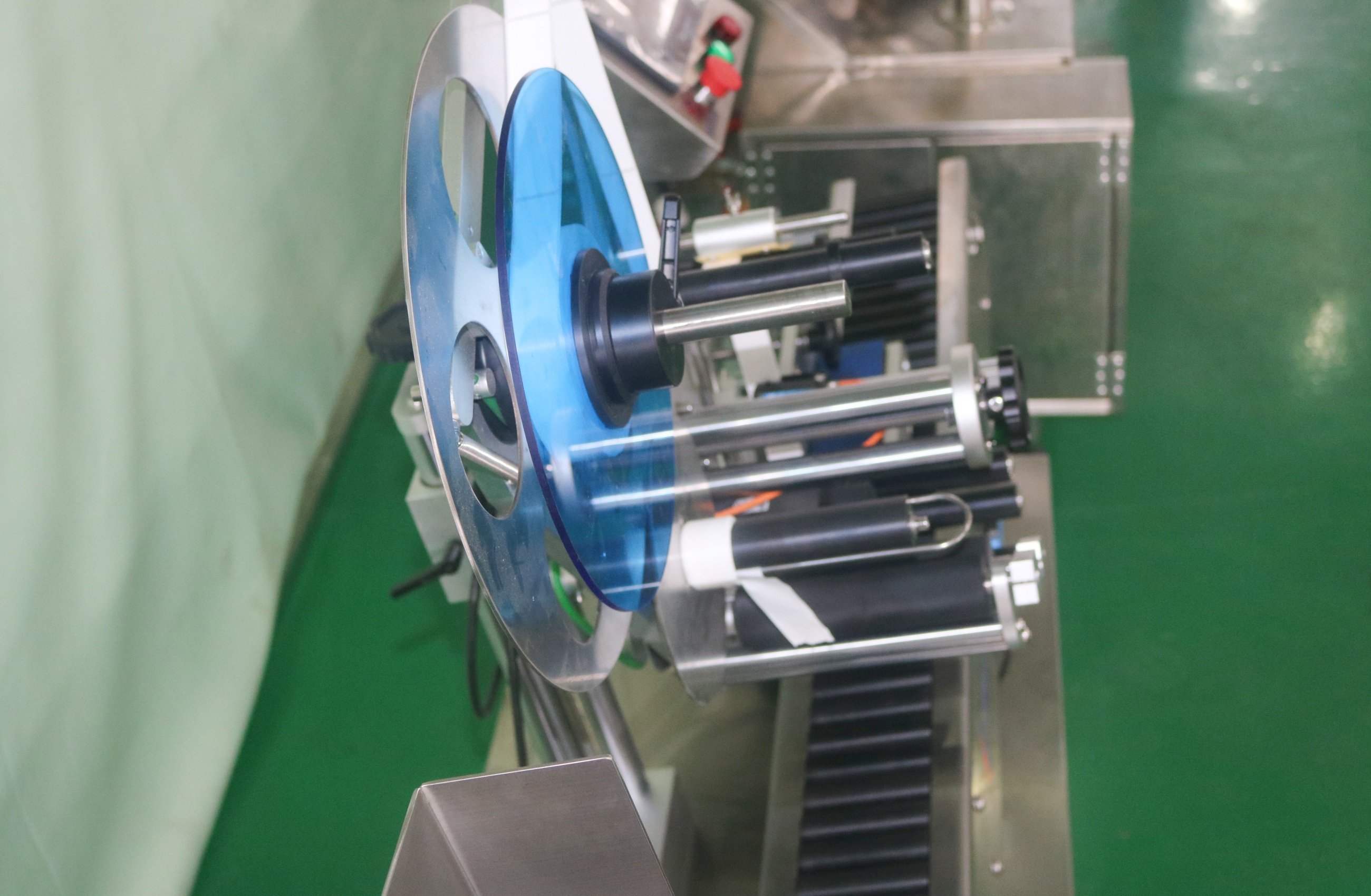

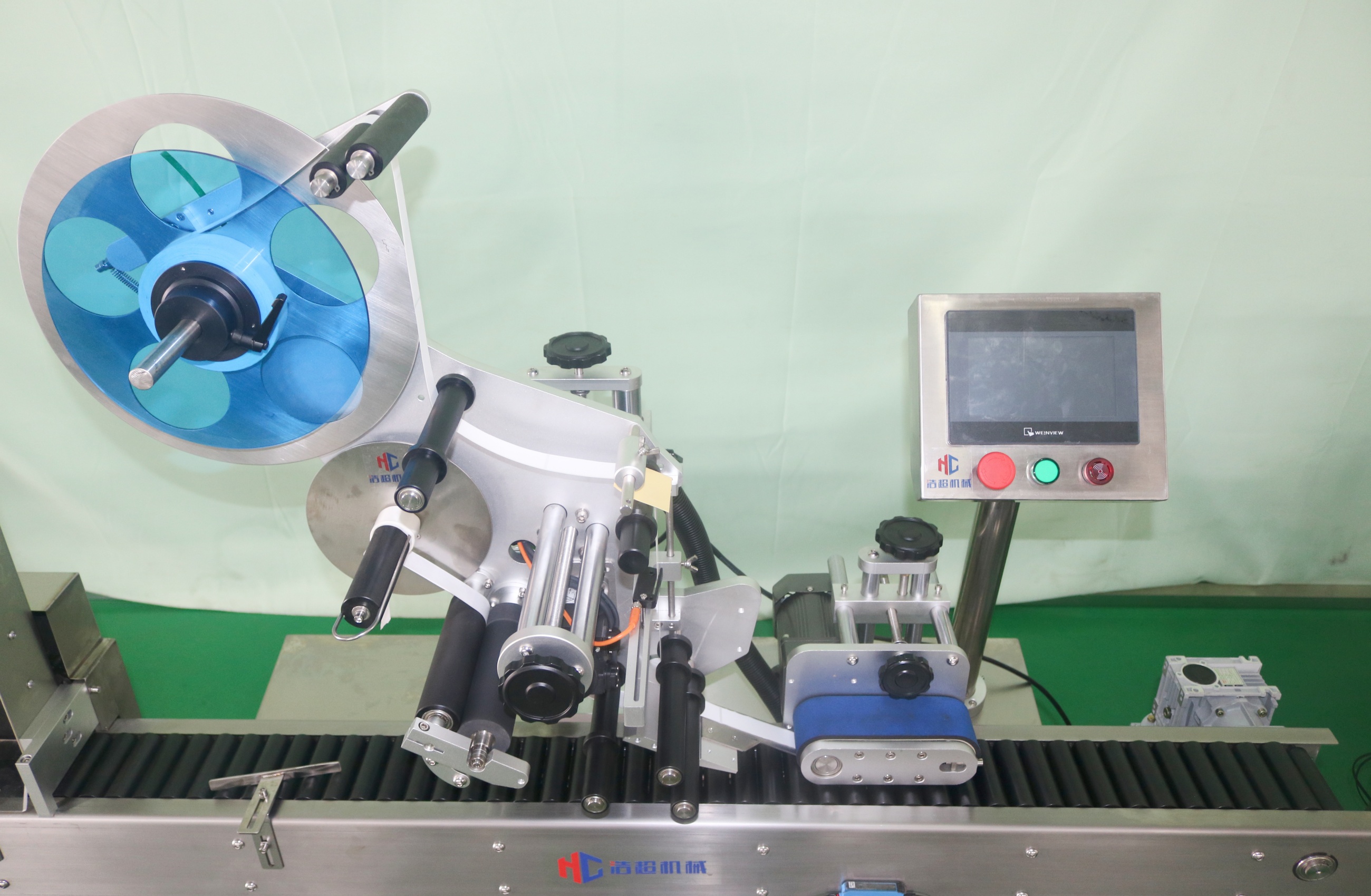

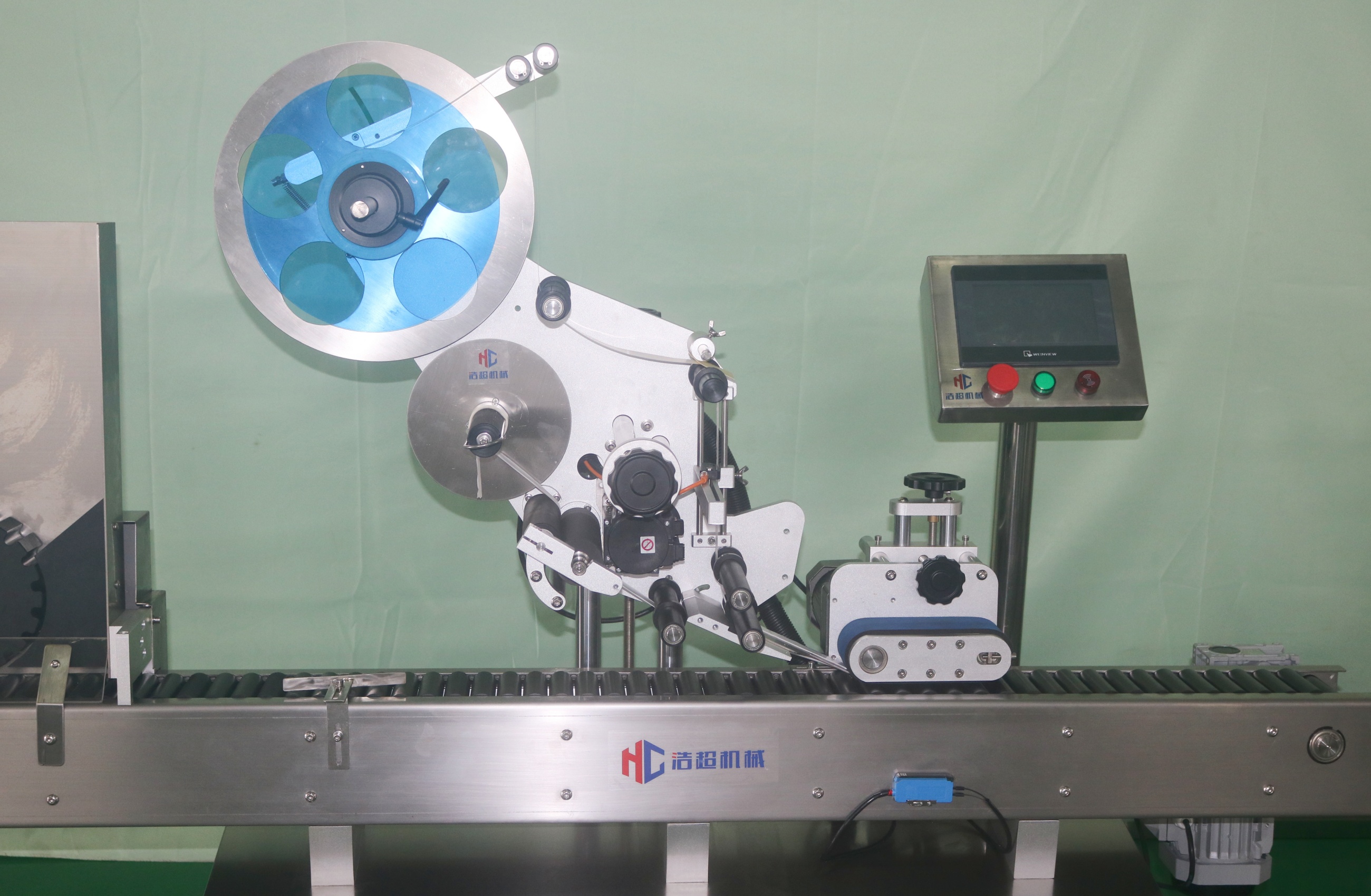

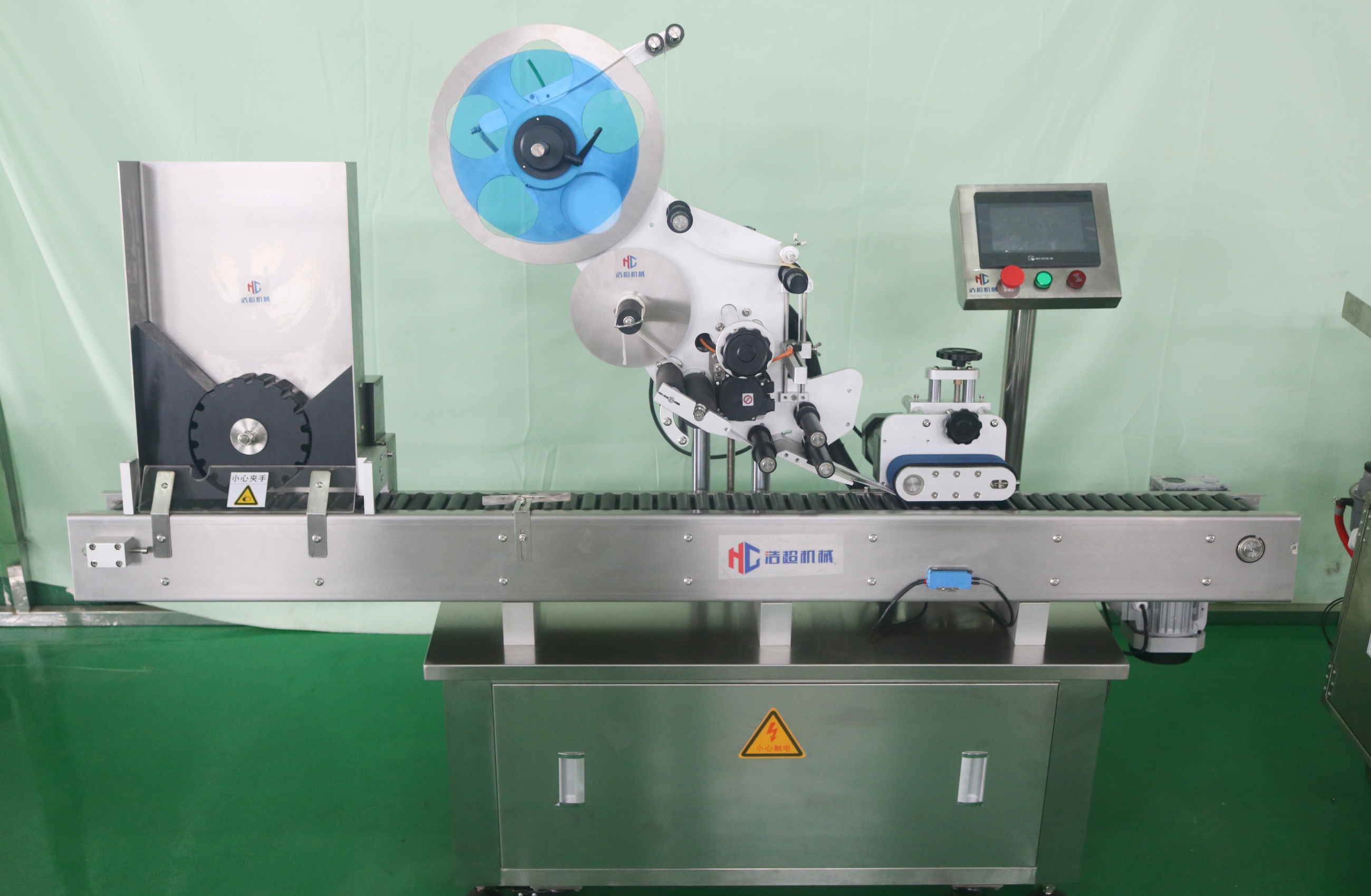

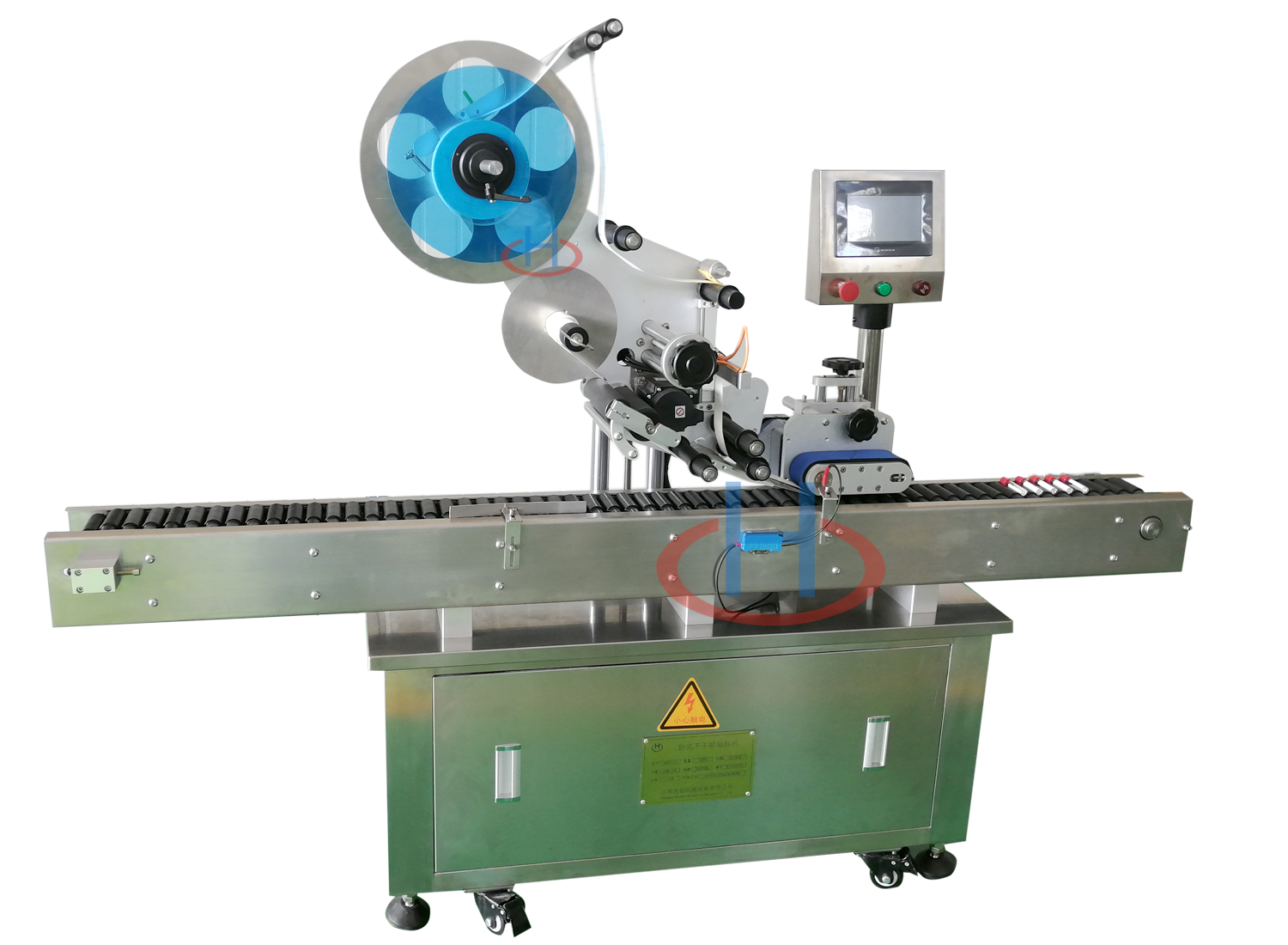

Our Horizontal Self-adhesive Labeling Machine (Model: HCWTB-90) is a purpose-built labeling solution exclusively engineered for small-diameter long-body bottles and tube bottles that cannot stand stably on standard conveyors. As a flagship product from Shanghai Haochao Machinery, a leading global packaging machinery manufacturer, this oral liquid labeling machine delivers stable, wrinkle-free labeling performance, with integrated intelligent controls and hot coding functions, making it the ideal choice for precision-driven production lines.

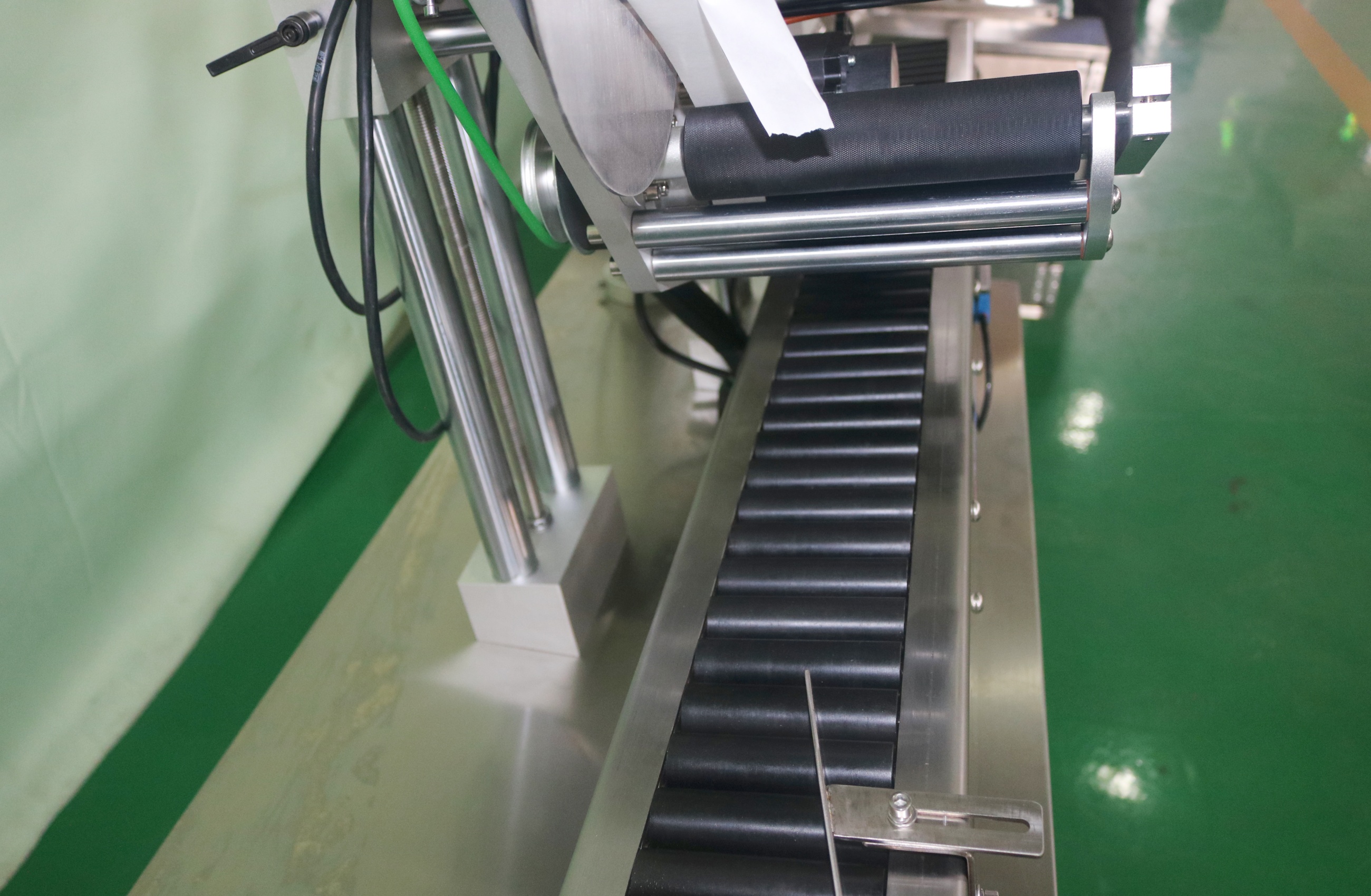

Tailored for 10-25mm small-diameter containers, this horizontal tube bottle labeling equipment adopts a horizontal conveying structure to eliminate bottle tipping, ensuring consistent labeling accuracy for ultra-slim oral liquid bottles and test tubes.
The multi-level intelligent system automatically stops label feeding when no bottle is detected, and triggers automatic shutdown for missing or broken labels, drastically cutting label waste and production downtime.
The built-in 3-line hot coding printer enables synchronous labeling and printing of production dates, batch numbers and expiry dates, streamlining end-to-end production workflows.
With a space-saving rational structure, the machine delivers stable 24/7 industrial performance, with high-quality materials ensuring long service life with minimal maintenance.
Parameter | Specification |
Model | HCWTB-90 |
Conveyor Height Above Ground | 780mm |
Conveyor Width | 150mm |
Labeling Speed | 20-300pcs/min |
Applicable Bottle Height | 25-95mm |
Applicable Bottle Diameter | 10-25mm |
Power Supply | 220V 50/60HZ 1.5KW |
Reference Weight | 200 kg |
Reference Dimensions | 1900×700×1600mm (L×W×H) |
Stable horizontal feeding and positioning of non-standing bottles;
Photoelectric sensor detection to trigger labeling only when a bottle is present;
Precision label peeling and application, with roller smoothing to eliminate bubbles;
Synchronous hot coding of production traceability information;
Automatic discharge to downstream production links for fully unmanned operation.
This oral liquid labeling machine is the industry standard for pharmaceutical factories, ideal for labeling oral liquid bottles, ampoules, reagent tubes and vials that cannot be processed by vertical labeling machines.
It also suits small-diameter essential oil bottles, test tube-packed foods, cosmetic sample tubes and other slim non-standing containers.
Our horizontal self-adhesive labeling machine is manufactured in strict compliance with ISO9001:2015 quality management system standards. Shanghai Haochao holds multiple utility model patents for core labeling technologies, with all machines undergoing full-load pre-shipment testing. We provide full-life maintenance and global quality tracking for all partners.
We offer tailored solutions including custom conveyor parameters, bottle fixtures, integration with existing filling/capping lines, multi-language interface customization, and full OEM/ODM branding services to meet your unique production needs.
It is specially designed for small-diameter bottles, supporting 10-25mm diameter, ideal for oral liquid and tube bottles.
Yes, it can be seamlessly matched with filling, capping and bottle feeding equipment, with custom adaptations for your existing line layout.
Its intelligent system stops label feeding when no bottle is detected, with automatic shutdown for label faults, cutting waste and production costs.
As a trusted packaging machinery partner for global customers, Shanghai Haochao provides one-stop solutions for pharmaceutical, food and chemical industries. Contact us today for a customized quote for your horizontal self-adhesive labeling machine, with full-life after-sales support and global delivery services.
