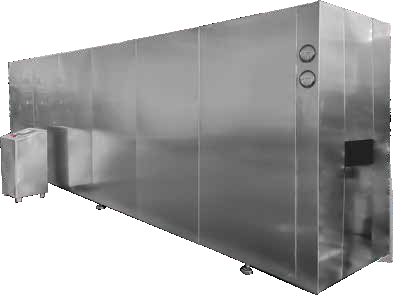

Our Hot Air Circulation Sterilization Tunnel is a professional industrial-grade drying and sterilization solution, specially designed for high-efficiency moisture removal and sterile treatment of glass containers. This equipment is the core upstream equipment for filling production lines, widely used for processing vials, oral liquid bottles, infusion bottles and other glass packaging. It adopts stainless steel chain or mesh belt transmission, equipped with far-infrared quartz heating system and independent moisture removal and cooling modules, realizing continuous, fully automated sterilization and drying operations, and providing stable support for downstream filling processes.
Realizes uninterrupted in-line production, with stable and efficient output, perfectly matching the beat of high-speed filling lines, greatly improving the overall production efficiency of the workshop and reducing manual intervention.
Adopts up and down dual far-infrared quartz heating tubes, with fast heating speed, uniform temperature field, significant energy saving and environmental protection effect, which can quickly heat the passing containers to the set sterilization temperature.
High-precision temperature control system, with temperature control accuracy up to industrial grade, equipped with continuously variable transmission, low operating noise, stable conveying speed, and adapt to different production process requirements.
Simple overall structure, modular design, easy daily maintenance and parts replacement, simple operation process, which can be quickly mastered by the operator, reducing the later operation and maintenance cost of the enterprise.
Model | Total Power | Heating Section Length | Overall Dimension | Transmission Speed | Temperature Range | Mesh Belt Width |
HCRX-400 | 23kW | 1900mm | 4000×1060×2000mm | 100-200mm/min | ≤300℃ | 500mm or customize |
HCRX-500 | 28kW | 2400mm | 5000×1060×2000mm | 100-200mm/min | ≤300℃ | 500mm or customize |
HCRX-600 | 33kW | 3000mm | 6000×1060×2000mm | 100-200mm/min | ≤300℃ | 500mm or customize |
Container Conveying: Clean glass containers are fed into the equipment through the feeding end, and stably conveyed by the food-grade stainless steel mesh belt/chain.
High-Temperature Sterilization & Drying: The container passes through the heating section, and is heated evenly by the upper and lower far-infrared heating tubes. The high temperature quickly evaporates the residual moisture inside and outside the container to achieve sterilization and drying.
Moisture Exhaust & Cooling: The evaporated water vapor is discharged out of the equipment in real time through the independent moisture removal system; the dried container enters the cooling section for rapid cooling to reach the temperature standard for downstream filling.
Discharging Output: The cooled, clean and dry sterile containers are output from the discharge end, and directly enter the filling process of the production line.
This industrial hot air sterilization tunnel is suitable for pharmaceutical, food, daily chemical, chemical and other industries. Typical scenarios include: sterilization and drying of pharmaceutical vials, oral liquid bottles, infusion bottles; drying and sterilization of food glass sauce bottles, beverage bottles; sterile drying of daily chemical essential oil bottles, perfume bottles; and moisture removal and sterilization of chemical reagent bottles, sample bottles.
The equipment is made of 304/316L food-grade stainless steel, in line with GMP production management specifications, and has passed ISO9001 quality management system certification. Each equipment has undergone strict full-load operation test and temperature field calibration before leaving the factory, with stable performance and long service life.
We provide fully customized services for this pharmaceutical bottle sterilization drying machine: customizable mesh belt width, heating section length, equipment overall size, transmission speed range according to production needs; can be matched with various specifications of filling production lines; support OEM/ODM customized services, including brand labeling, process optimization, and exclusive function development.
The maximum operating temperature of the standard equipment is ≤300℃, which can meet the high-temperature sterilization and drying needs of most glass containers, and the temperature range can be customized according to special process requirements.
Yes, we can adjust the conveying speed, inlet and outlet height, and overall layout according to the parameters of your existing production line to achieve seamless docking.
The standard far-infrared quartz heating tube has a service life of more than 8000 hours under normal use, and we provide full-life spare parts supply and maintenance support.
Whether you need a standard continuous hot air sterilization equipment or a fully customized sterilization drying solution, our professional team can provide you with one-to-one technical support and exclusive solutions. Contact us today to get a free quotation and process design, and upgrade your production line's sterilization efficiency and compliance level!
