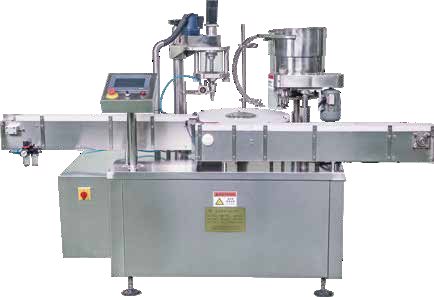

Our Powder Filling & Capping Machine is a fully automated, high-precision packaging solution purpose-built for small to medium dose dry powder filling and capping operations. This integrated system adopts advanced screw metering technology to deliver consistent, dust-free filling for 1g to 500g powder products, combining bottle feeding, precision dosing, cap sorting, and secure capping into a single streamlined workflow. With PLC+HMI intelligent control, frequency conversion speed regulation, and no bottle no filling protection, it maximizes production efficiency while minimizing powder waste and cross-contamination. Fully compliant with GMP standards, it is the ideal packaging partner for enterprises in pharmaceutical, nutraceutical, agricultural chemical, and scientific research industries.
Equipped with a professional screw metering powder filling system, this machine delivers exceptional filling accuracy of ≤±1% across the full 1-500g filling range, adapting seamlessly to various powder densities and flow characteristics. The closed filling structure effectively prevents dust overflow, maintaining a clean and compliant production environment.
The machine adopts HMI setting + PLC central control, enabling one-click parameter adjustment, arbitrary frequency conversion speed regulation, and real-time automatic counting. The built-in automatic stop function and no bottle no filling interlock system prevent empty fills, material waste, and unplanned downtime, with real-time fault display for quick and convenient maintenance.
The dedicated capping system achieves a capping qualification rate of ≥99%, delivering consistent, torque-controlled sealing for various bottle and cap specifications, effectively preventing product leakage and ensuring long shelf life for your powder products.
Parameter | Standard Specification |
Filling Range | 1-500g |
Filling Accuracy | ≤±1% |
Capping Qualification Rate | ≥99% |
Production Speed | 30-50 bottles/min; 60-80 bottles/min |
Filling Method | Screw Metering Filling |
Power Supply | 220V, 50Hz |
Rated Power | 2.0kW |
Net Weight | 700kg |
Overall Dimension | 2200×1000×1800mm |
The automatic dry powder filler capper operates via a fully enclosed, dust-free automated workflow, starting with automatic bottle unscrambling and precise positioning at the dedicated filling station. The closed screw metering system then executes precise powder filling, with the no bottle no filling system activated to skip empty bottle positions and avoid unnecessary powder waste. The workflow proceeds with vibratory cap sorting and accurate placement on bottle mouths, followed by torque-controlled capping for secure, consistent sealing of every container. The process concludes with finished product discharge for subsequent packaging links, with the entire workflow fully automated to reduce labor costs and operator dust exposure risks.
Pharmaceutical & Biotech: Penicillin powder, antibiotic powder, freeze-dried powder, and other pharmaceutical grade dry powder products
Nutraceutical & Cosmetic: Collagen powder, protein powder, probiotic powder, and high-end beauty care powder products
Agricultural Chemical & Scientific Research: Pesticide powder, reagent powder, and experimental samples for agricultural production and laboratory research applications
Our GMP compliant powder filling equipment is designed and manufactured in strict accordance with global GMP production requirements. All product contact parts are made of food-grade SUS 316L stainless steel, with the main equipment body constructed from SUS 304 stainless steel, ensuring full hygienic compliance and easy, thorough cleaning. Every unit undergoes rigorous multi-point testing and precision calibration before delivery, backed by a 12-month warranty and lifelong technical support for global clients.
We offer comprehensive customizable solutions to meet diverse production needs, including extended filling ranges beyond the standard 1-500g, custom bottle/cap compatibility, integrated dust removal systems, automatic powder feeding units, and full line integration with upstream/downstream production equipment. We also provide full OEM/ODM support, including custom branding, control system customization, and equipment layout design to perfectly fit your factory’s unique production environment.
The machine is standardly compatible with 1g to 500g dry powder products, with custom filling ranges available upon request to accommodate special production requirements.
The dedicated capping system achieves a stable capping qualification rate of ≥99%, ensuring secure, leak-proof sealing for every single bottle across continuous production runs.
Yes, the professional screw metering system adapts seamlessly to various powder types, including pharmaceutical powder, collagen powder, pesticide powder, and laboratory reagent powders.
Ready to solve your powder filling challenges with high precision and production efficiency? Contact our professional team today for a free tailored solution, detailed quotation, and sample testing service for our Powder Filling & Capping Machine. We provide end-to-end support including installation guidance, operator training, and 24/7 global technical assistance to optimize your production line performance.
