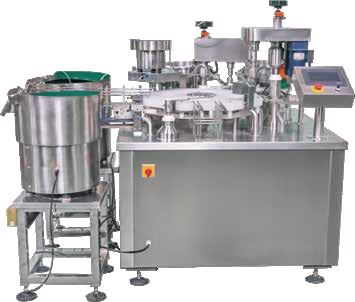

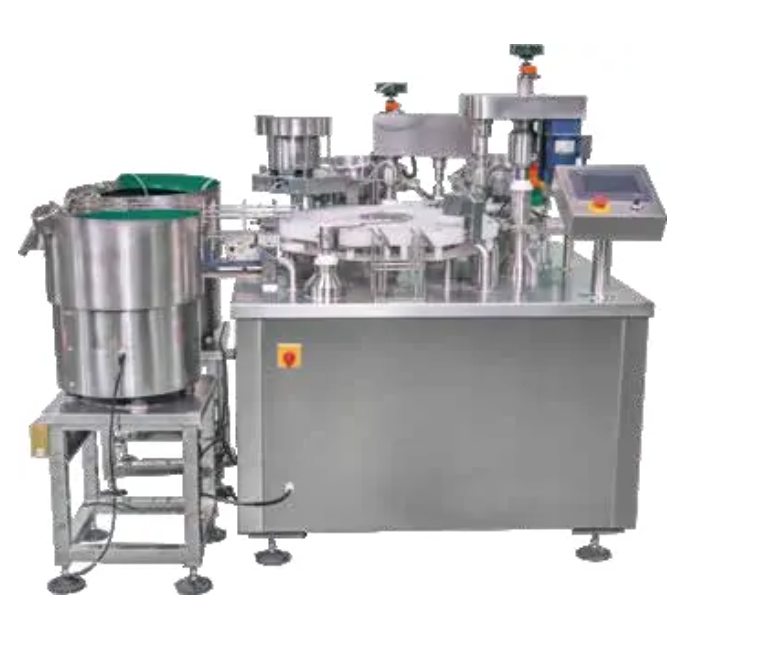

Our Sampling Tube Filling & Capping Machine is a fully integrated, GMP-compliant packaging solution engineered exclusively for automated filling and capping of 5ml to 30ml sampling tubes. This all-in-one system consolidates tube unscrambling, precision filling, cap feeding, and secure capping into a single uninterrupted workflow, eliminating manual intervention and cross-contamination risks. Equipped with intelligent safety mechanisms including no bottle no filling, no cap no capping, and missing cap alarm, it minimizes material waste and maximizes production yield. With a compact, rational structure, stable long-term operation, and user-friendly maintenance, it is the preferred choice for enterprises pursuing high-volume, high-precision sampling tube packaging.
Powered by advanced servo motor control and rotary positioning filling technology, our automatic sampling tube filler capper delivers industry-leading filling accuracy of ≤±1~2%, ensuring consistent dosing across every batch. All core electrical components are sourced from globally recognized brands, guaranteeing reliable performance in 24/7 continuous production.
The machine features an intuitive HMI control panel, enabling one-click parameter adjustment, stepless speed regulation, and real-time automatic counting. Its built-in intelligent interlock system prevents empty fills, defective capping, and unplanned downtime, with real-time fault alerts for quick troubleshooting.
Fabricated with premium SUS 304 and 316L stainless steel, the equipment fully meets pharmaceutical hygienic standards, with a smooth, crevice-free surface for easy cleaning and sterilization, eliminating residue buildup.
Parameter | Standard Specification |
Compatible Tube Volume | 5-30ml |
Filling Accuracy | ≤±1~2% |
Production Speed | 30-50 bottles/min; 60-90 bottles/min |
Air Pressure & Consumption | 0.6-0.8MPa, 10-40m³/h |
Power Supply | 380/220V, 50Hz |
Rated Power | 2.5kW |
Overall Dimension | 2000×2000×1800mm |
The high-precision sampling tube filling equipment operates via a seamless automated workflow, starting with automatic tube unscrambling and precise positioning at the filling station. Next, the servo-driven system executes precision filling, with the no bottle no filling mechanism activated to skip empty tube positions and avoid material waste. The system then completes vibratory cap feeding and accurate cap placement onto tube mouths, followed by uniform, torque-controlled capping, with a missing cap alarm triggered automatically for insufficient cap supply. The workflow concludes with finished product discharge, with the entire process requiring minimal manual operation to reduce labor costs and contamination risks.
Biomedical & Disease Control: Virus sampling tubes, nucleic acid test tubes, biological specimen tubes for CDC and biopharma enterprises
Clinical Laboratory & IVD: Reagent tubes, sample collection tubes for clinical labs and in vitro diagnostic manufacturers
Food & Environmental Testing: Sampling tubes for food safety testing, water quality monitoring, and environmental sample collection
Our 5ml-30ml test tube filling capping machine is designed and manufactured in strict accordance with GMP production requirements. All wetted parts use food-grade SUS 316L stainless steel, with full traceability of raw materials. Every unit undergoes rigorous full-load testing and precision calibration before delivery, backed by a 12-month warranty and lifelong technical support.
We offer tailored solutions including custom filling volume, compatible special tube/cap specifications, adjustable production speed, and integration with upstream/downstream production lines. Full OEM/ODM support is available, including custom branding, control system programming, and equipment layout design to match your factory’s needs.
The machine is standardly compatible with 5ml, 10ml, 20ml, 30ml sampling tubes, with custom volume support available to meet unique production requirements.
Filling accuracy is stably controlled within ≤±1~2%, ensuring consistent and compliant dosing for every single sampling tube across full production batches.
Yes, the machine is fully constructed with SUS 304/316L stainless steel, with a hygienic design developed in strict compliance with global GMP production and hygienic standards.
Ready to upgrade your sampling tube packaging line with high efficiency and precision? Contact our expert team today for a free customized solution, detailed quotation, and on-site testing service. We provide full after-sales support including installation guidance, operator training, and 24/7 technical assistance to maximize your production ROI.
